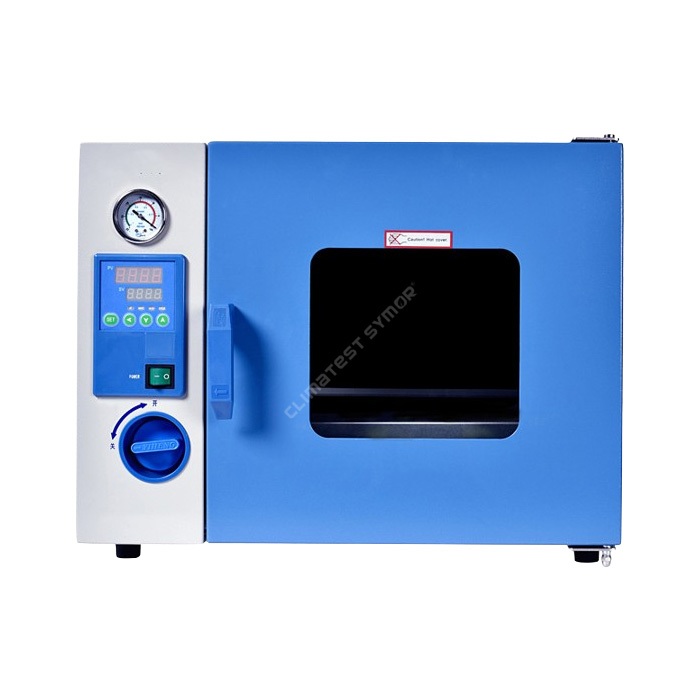

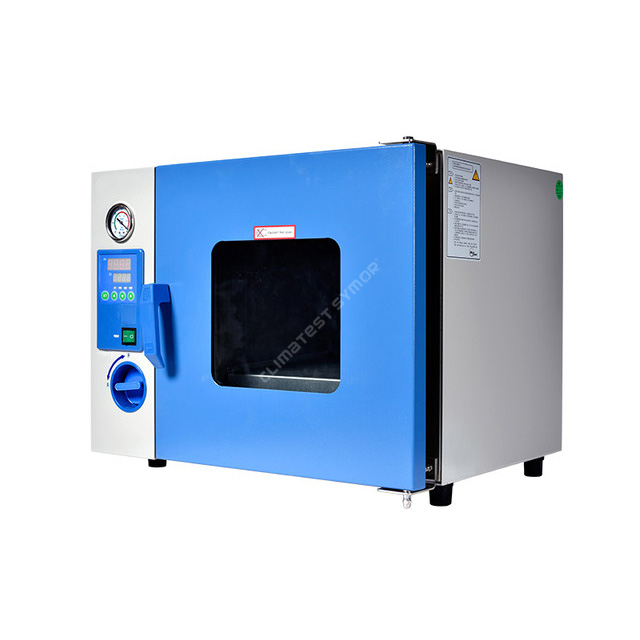

Climatest Symor® benchtop vacuum curing oven is suitable for rapid, mild and safe baking, curing, drying, embedding, extraction or life cycle testing of non-flammable, temperature sensitive, easily decomposed and highly oxidized products in a vacuum environment. This environment can reduce the boiling point and dry temperature. They are widely used in chemistry, electronics, pharmaceuticals, adhesives, plastic processing and more.
Model: TZF-6020
Capacity: 20L
Interior Dimension: 300*300*275 mm
Exterior dimension: 610*445*470 mm
Description
Climatest Symor® vacuum curing oven, or vacuum drying oven, is primarily used to expedite the drying process by employing vacuum and heat, it is energy-efficient with excellent temperature regulation ability, safe and convenient operation, and economical price. The oven offers temperature up to 200°C and vacuum degree to 133 Pa, and comes in five different sizes ranging from 20 to 250 liters.
Specification
| Model | TZF-6020 | TZF-6030 | TZF-6050 | TZF-6090 | TZF-6250 |
| Power Consumption | 500W | 800W | 1400W | 2400W | 4000W |
| Capacity | 20L | 30L | 50L | 90L | 250L |
| Interior Dim.(W*D*H)mm | 300*300*275 | 320*320*300 | 415*370*345 | 450*450*450 | 700*600*600 |
| Exterior Dim.(W*D*H)mm | 610*445*470 | 630*460*500 | 720*515*535 | 755*595*720 | 1225*765*890 |
| Temperature Range | RT+10°C ~ 200°C | ||||
| Temperature Fluctuation | ± 0.5°C | ||||
| Temperature Resolution | 0.1°C | ||||
| Vacuum Degree | 133 Pa | ||||
| Vacuum Gauge | Mechanical needle | ||||
| Shelves | 1PC | 2PCS | 3PCS | ||
| Power Supply | AC220V 50HZ | AC380V 50HZ | |||
| Ambient Temperature | +5°C~ 40°C | ||||
Options
. Programmable temperature controller
. Inert gas valve
. Vacuum pump 2XZ-2/2XZ-4
. Dry filter
Features
►Stainless Steel Inner Chamber
The inner chamber is made of stainless steel SUS304, providing durability and easy cleaning with good thermal resistance. The height-adjustable shelves enable more effective contact area and high heat conductivity, it’s 40% higher heat transfer efficiency than traditional methods.
►Jacketed Heating Technology
The vacuum curing oven is heated using a 4-sided jacket radiant technology, the heat is radiated into the inner chamber through the wall to realize uniform temperature distribution.
►Temperature control system
Intelligent PID temperature controller, constant temperature control mode, auto-tuning. Temperature output power is calculated by micro computer to achieve high efficiency and high precision. Equipped with over-temperature alarm protection function to ensure the operation safety.
►Inert Gas Intake Valve (opional)
The diameter 8mm hose and labor-saving electromagnetic valve allow the safe introduction of inert gas or ambient air into the chamber to meet the requirements of inert gas drying, anti-oxidization, cleaning interior moisture, or discharging vacuum.
What benefits can the vacuum curing oven bring to you?
Reduced Porosity: By removing air from the curing environment, vacuum curing ovens minimize the formation of voids and bubbles within the material being cured. This leads to products with lower porosity, improved mechanical properties, and enhanced structural integrity.
Prevention of Oxidation and Contamination: Vacuum curing ovens can prevent oxidation and contamination of materials, particularly those that are sensitive to exposure to oxygen or other gases. This is important for maintaining the integrity and properties of materials such as composites, adhesives, and coatings.
Optimized Cure Rates: Vacuum curing ovens allow for precise control over temperature and pressure, enabling manufacturers to optimize cure rates for different materials and applications. This flexibility helps to improve production efficiency and reduce cycle times.
Why choose vacuum curing oven from Climatest Symor®?
Climatest Symor® is the manufacturer and factory of industrial vacuum curing ovens at competitive prices, these ovens offer 50-200°C continuously running chambers, and available in different standard sizes according to your manufacturing process.
Climatest Symor® focuses on temperature control technology, we are familiar with various applications in electronics, automotive and chemical industries, we’ve been recognized by well-known customers worldwide, such as DuPont, Chemours, Foxconn, Wistron, IMI, SCHMID, and more. Our senior technical engineers can provide you with the best technical solutions to improve the temperature-related manufacturing processes.
Climatest Symor®adopts advanced facilities to manufacture vacuum curing ovens, such as AMADA sheet metal equipment, CNC bending machine, CNC cutting machine, high precision plate cutting machine; Japan imported gas welding, and argon arc welding machine.
Climatest Symor® makes timely delivery of industrial vacuum curing ovens, electronic dry cabinets and environmental test chambers to worldwide customers, for products within the warranty period, we offer a free replacement parts service within 24 hours. Climatest Symor® has built long-term partnership with our distributors in Malaysia, Singapore, Vietnam, India, Israel, Brazil and Africa, and also many end users in Europe, North Amercia, we provide them lifetime technical support for free even after warranty period, welcome to reach us for possible collabration.
How to use Climatest Symor® vacuum curing oven?
Application
Climatest Symor® strives to become an excellent manufacturer of industrial lab vacuum curing ovens in China, our ovens can be used in a wide range of applications:
Drying: Removing moisture from materials without subjecting them to high temperatures, which can cause degradation.
Annealing: Heat treatment process used to improve the ductility and reduce the hardness of materials.
Curing: Accelerating the curing process of various materials such as adhesives, resins, and coatings.
De-gassing: Removing trapped gases from materials, which is crucial in processes like casting and polymerization.
Laboratory vacuum curing ovens improve product quality, enhance process efficiency, and expand the range of materials and applications that can be effectively cured. They play a vital role in modern manufacturing processes where precision, reliability, and quality are rest-assured.
