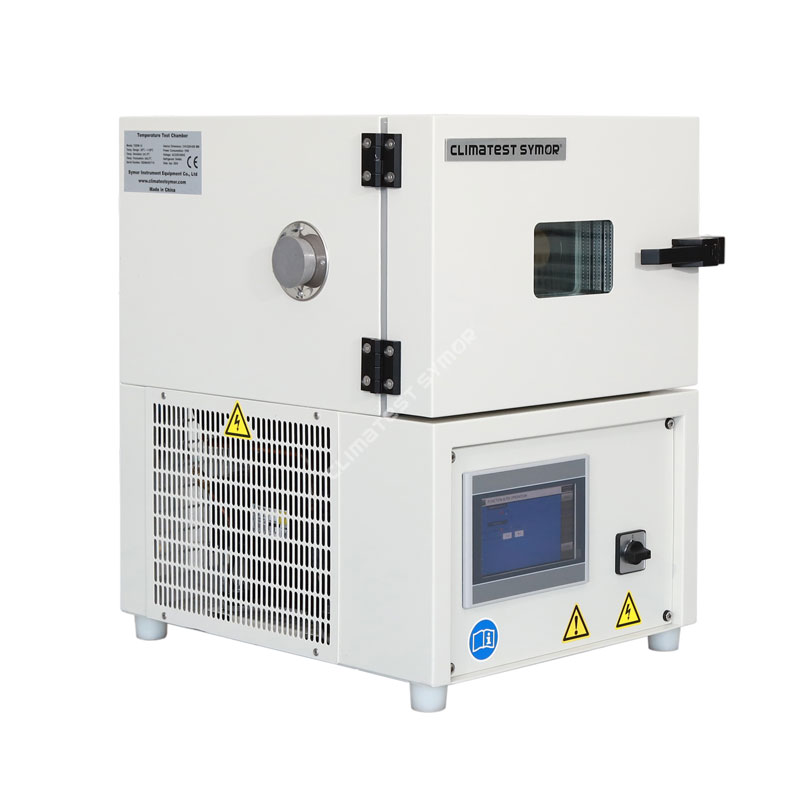

Benchtop Temperature Test Chamber Small Humidity Chamber, also called benchtop thermal cycling chamber, or benchtop temperature chamber, is designed to simulate full ranges of temperature conditions, the small footprint makes it optimal for testing small components and products on benchtop in a laboratory. A Benchtop Temperature Test Chamber Small Humidity Chamber provides accurate temperature control with PID function, customer is able to perform temperature tests with a range of -40°C~+130°C.
Model: TGDW-36
Capacity: 36L
Shelf: 1pc
Color: Off-white
Interior dimension: 400×300×300 mm
Exterior dimension: 640×730×970 mm
Description
Climatest Symor® Benchtop Temperature Test Chamber Small Humidity Chamber comes in different sizes and temperatures, the chamber can evaluate physical changes of products under extreme temperature cycling conditions, Benchtop Temperature Test Chamber Small Humidity Chamber provides the ideal testing solution for small components, and available in sizes of 12L, 22L, and 36L.
Specification
| Model | TGDW-12 | TGDW-22 | TGDW-36 |
| Interior Dimension(W*D*H) | 310×230×200 mm | 320×250×250 mm | 400×300×300 mm |
| Exterior Dimension(W*D*H) | 500×540×650 mm | 520×560×730 mm | 640×730×970 mm |
| Temperature Range | Model A :-20°C~+130°C Model B: -40°C~+130°C | ||
| Temperature Fluctuation | ≤±0.5°C | ||
| Temperature Bias | ≤1.0°C | ||
| Temperature Uniformity | ≤1.5°C | ||
| Heating Rate | +25℃～+130℃≤30 minutes (unload) | ||
| Cooling Rate | +25℃～-40℃≤45 minutes (unload) | ||
| Interior Material | SUS#304 brushed stainless steel | ||
| Exterior Material | Reinforced Steel plate with electrostatic spraying | ||
| Insulation | Superfine fiberglass wool/polyurethane foam | ||
| Controller | 7” Programmable touchscreen controller | ||
| Circulation System | Low-noise, high-temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan | ||
| Heating System | NiCr heater, independent system | ||
| Refrigeration System | France "TECUMSEH" Refrigeration Compressors, air cooling | ||
| Power Supply | AC110V/220V/AC230V·50HZ/60HZ | ||
Safety protection:
· Independent temperature limiter: An independent shutdown and alarm for thermal protection purpose during the test.
· Refrigeration system: Over-heat, over-current and over-pressure protection of compressor.
· Test chamber: Over-temperature protection, overheat of fan and motor, phase failure/reverse, and timing.
· Others: Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage protection, and overload protection.

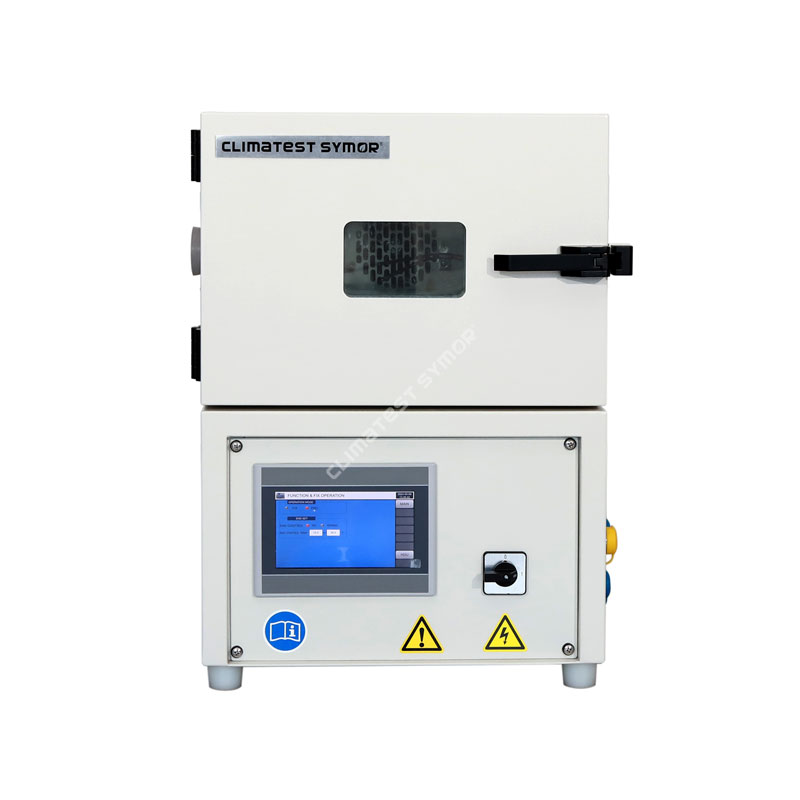

Programmable controller
▸7-inch programmable touch screen controller
▸Set temperature point under fix value mode or programs mode
▸Temperature set point and realtime temperature curve display
▸Test data can be downloaded through RS485 interface
Features

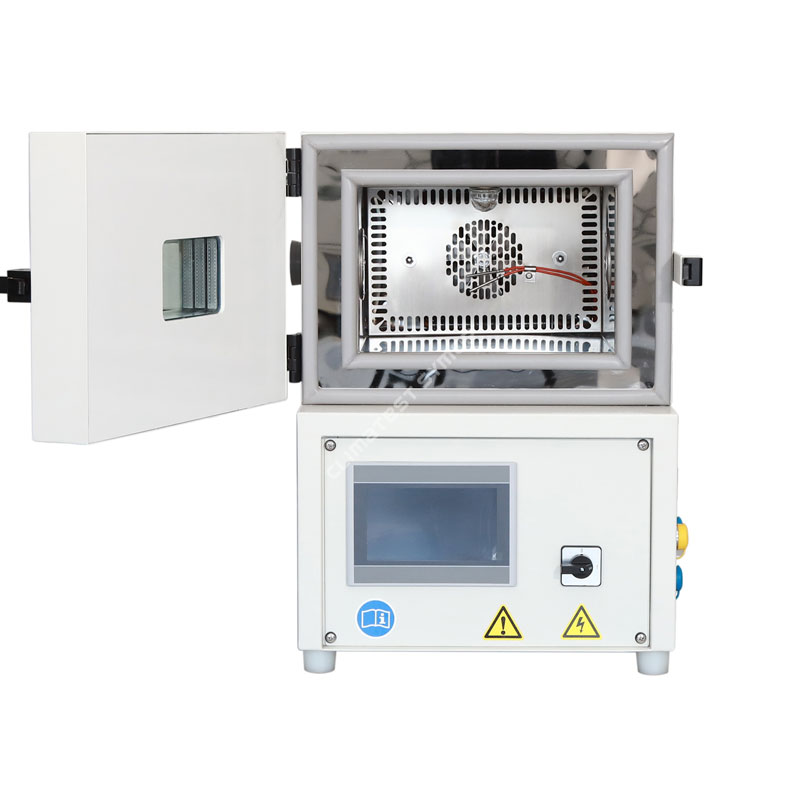

▸Working zone is made by anti-corrosion SUS#304 brushed stainless steel
▸Superipr door sealing made by reinforced silicone rubber, high temperature resistant and aging resistant
▸Uniform air circulation system inside working zone
▸Original imported France "Tecumseh" refrigeration compressors

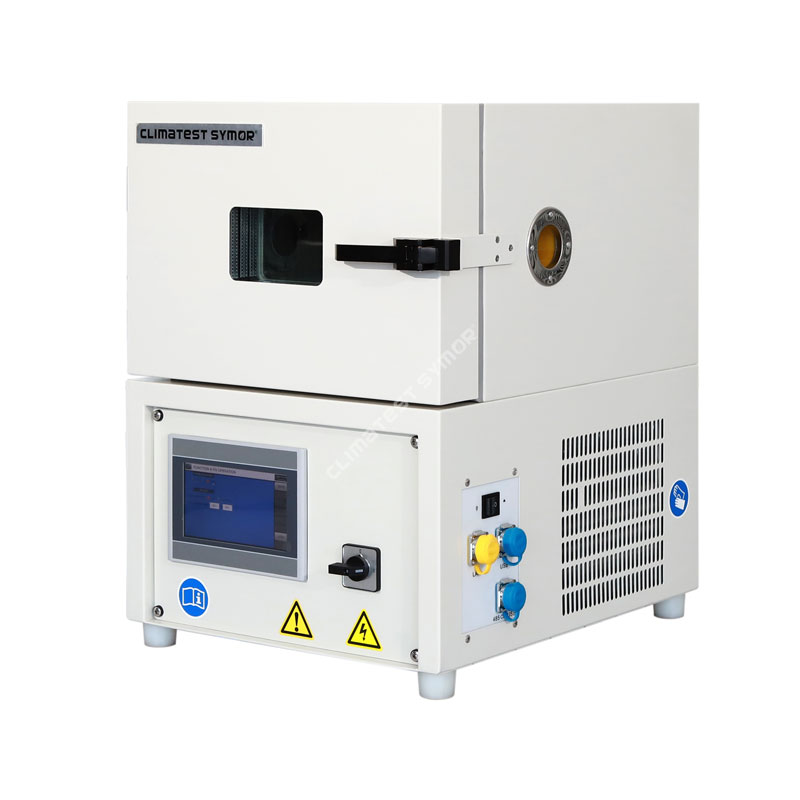

▸25mm diameter cable port locates at the right side
Benefits
·Easy installation
·Precise temperature control in small chamber
·Desktop type designed for limited space laboratory
·Over-temperature limiter
·Programmable LCD controller
·Record 365 days history data
·Temperature & humidity realtime and history curve display
·RS485 computer interface for data download
Application
The Benchtop Temperature Test Chamber Small Humidity Chamber simulates high and low-temperature environmental conditions to test products’ performance against extreme climate conditions. Benchtop Temperature Test Chamber Small Humidity Chamber applies to the below industries:
▸Electronic& Semiconductor Industry:
The inherent reliability of electronic components depends on the reliability design scheme. During the manufacturing process, due to fluctuations in human factors or raw materials, process parameters, and equipment conditions, the final product cannot achieve the expected reliability. In each batch of finished products, there are hidden defects, that manifest as early failure under certain stress conditions.
Therefore, the Benchtop Temperature Test Chamber Small Humidity Chamber can help to eliminate these electronic components with initial failure as much as possible, and it's one of the screening equipment in the early quality control process:
▸Automobile Industry:
In the automobile industry, a desktop temperature (humidity) chamber is one of the most crucial environment testing equipment. Products are like experiencing "torture" through environmental testing, auto parts are tested rigorously, problems are found, and initial product design plans are repeatedly revised to improve quality.
What temperature and humidity tests should be done on auto parts?
1) High-temperature test
2) Low-temperature test
3) Damp heat test
▸Plastics Manufacturing Industry:
Plastic enclosures and containers exist in our lives, including household appliances, instrumentation, construction equipment, the automobile industry, daily hardware, and more. Plastic products have increased rapidly in recent years, and to improve quality and competitiveness, manufacturers now pay more attention to the reliability testing of their plastic products.
A Benchtop Temperature Test Chamber Small Humidity Chamber helps manufacturers detect defects in their plastic enclosure shortly, and provides them with valuable data collection during the R&D stage, this greatly improves production efficiency, and saves costs.
Moreover, a Benchtop Temperature Test Chamber Small Humidity Chamber is used in the Communication, Pharmaceutical, Military, and Packaging industries to meet testing requirements by simulating the natural and accelerated environment. The chamber is a must-have machine for reliability testing, and it can efficiently detect the performance changes of products in different environments and plays a vital role in product research and development.
Do you have the problem of limit space in your laboratory?
Climatest Symor® Benchtop Temperature Test Chamber Small Humidity Chamber conducts high-low temperature tests for small samples in the R&D stage, a temperature range of -40℃ to +150℃ makes it possible to test samples’ resistance against extreme temperature changes. This benchtop temperature cycling chamber provides users with a compact unit, the operation is environmental and quiet, and it is the best seller in laboratories with limited space.
How to set fix and program?
▸Fix value setting: 85°C
▸Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.
What are advantages of Climatest Symor® Benchtop Temperature Test Chamber Small Humidity Chamber?
▸With independent intellectual property rights and design patents and master the environmental test chamber core technology.
▸The controller is easy-to-operate LCD programmable.
▸Accurate temperature control and uniformity.
▸The refrigeration system uses France's original imported compressors.
▸Lighting system adopts high-temperature-aging resistant lighting, and viewing window for easy observation.
▸Equipped with a multi-safety protection device.
Packing
Step 1: Wrap thin film onto the Benchtop Temperature Test Chamber Small Humidity Chamber for waterproof and dustproof use.
Step 2: Bind bubble foam on the temperature chamber tightly, and then cover the machine with a big plastic bag.
Step 3: Put the temperature test chamber into a reinforced plywood case with a pallet at the bottom.
This package is firm enough to withstand bumpy sea and railway transportation, and the product can be delivered to customers smoothly.
Shipping
The Benchtop Temperature Test Chamber Small Humidity Chamber is not suitable for air shipment, because there is refrigerant and compressor inside, currently the following are the common shipment solutions:
▸To Europe: By sea, China-EU railway, China-EU truck
▸To North America/South America: By sea, Matson
▸To Southeast Asia: By sea, by road
▸To New Zealand/Australia: By sea
▸To Africa: By sea
Climatest Symor® arranges booking service, and cooperate with customers under different incoterms, such as CIF/FOB//EXW/DAP; we also provide door-to-door service (incoterm: DDP), that means we handle all export and import shipments and papers, customers just sign for receipt.
Commonly Asked Questions and Answers
Q: What is the warranty and support offered?
A: We provide a year warranty with lifetime free technical support, Benchtop Temperature Test Chamber Small Humidity Chambers work stably and reliably, and it's hard to malfunction except for artificial damage. In case any parts fail, we will ship to you within 24 hours by FedEx/DHL, and we will also provide you with the installation video, as long as you know how to use a screwdriver, you can handle it.
Q: What are the power requirements?
A: The standard power supply of the Benchtop Temperature Test Chamber Small Humidity Chambers is 220V/230V, 50HZ, and if you have other requirements, pls check with our salesman. (Email: sales@climatestsymor.com)
Q: How noisy is the chamber during operation?
A: 65dB
Q: What is the production lead time for delivery?
A: 7 working days, we have stock for the standard Benchtop Temperature Test Chamber Small Humidity Chambers.
