Environmental Chamber Manufacturer

Climatest Symor® is an environmental chamber manufacturer and supplier in China, environmental test chamber is a type of laboratory equipment used to simulate and control various environmental conditions, such as high low temperature and humidity. The chamber is designed to maintain consistent conditions inside, allowing engineers, and researchers to perform tests and experiments in a controlled environment.

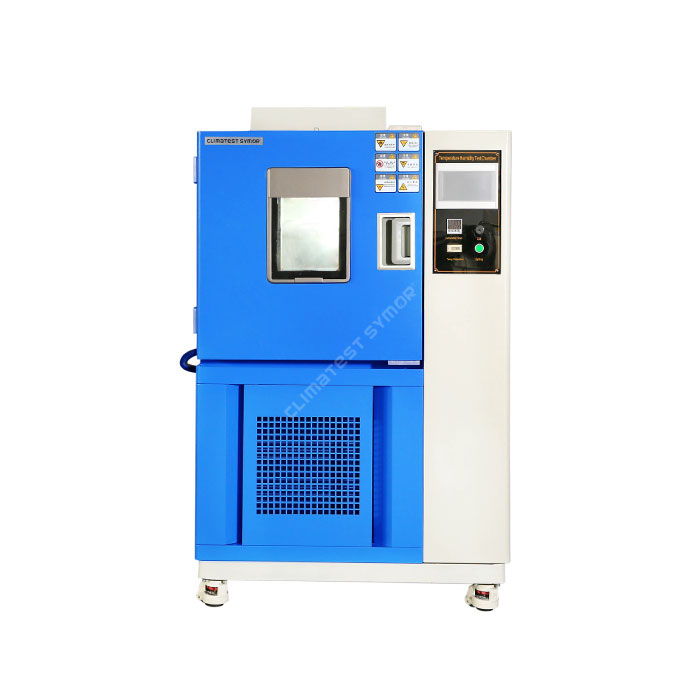

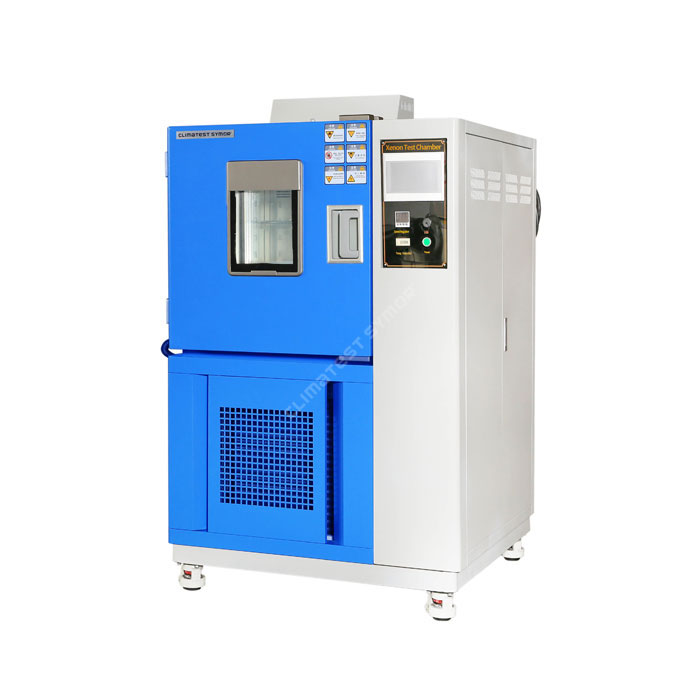

Model: TGDJS-50
Capacity: 50L
Shelf: 2 pcs
Color: Blue
Interior dimension: 350×320×450 mm
Exterior dimension: 950×950×1400 mm

Send Inquiry

Product Description

As an environmental chamber manufacturer, Climatest Symor® supplies all kinds of climate simulation equipments, from small benchtop units to large walk-in chambers. Some chambers are equipped with advanced control systems, allowing for precise and automated control of temperature and humidity levels. The design and specifications of an environmental chamber will depend on the specific needs and requirements of the user. You can click below video to learn details:



Specification

Model

TGDJS-50

TGDJS-100

TGDJS-150

TGDJS-250

TGDJS-500

TGDJS-800

TGDJS-1000

Interior Dimension

350×320×450

500×400×500

500×500×600

600×500×810

800×700×900

1000×800×1000

1000×1000×1000

Exterior Dimension

950×950×1400

1050×1030×1750

1050×1100×1850

1120×1100×2010

1350×1300×2200

1560×1410×2240

1560×1610×2240

Temperature Range

Model A :-20°C~+150°C Model B: -40°C~+150°C Model C: -70°C~+150°C

Temperature Fluctuation: ≤±0.5°C; Temperature Uniformity: ≤2°C

Heating Rate

2.0~3.0°C/min

Cooling Rate

0.7~1.0°C/min

Humidity Range

20% ~ 98% R.H (5%RH,10%RH also available)

Humidity Bias

+2/-3% R.H

Interior Material

Anti-corrosion SUS#304 brushed stainless steel

Exterior Material

Cold rolled steel plate with electrostatic spraying

Insulation

Superfine fiberglass wool / polyurethane foam

Controller

7”Programmable LCD touch screen controller

Circulation System

High temperature resistant motors, single cycle, long axis and stainless steel multi-leaf type centrifuge fan

Humidification

Shallow groove humidification, steam humidification mode, automatic water supply with water shortage alarm

Dehumidification

Refrigeration dehumidification mode

Heating System

NiCr heater, independent system

Refrigeration

France "TECUMSEH" Hermetic Compressors, Unit cooling mode/Dual cooling mode (air-cooling)

Protection Devices

Leakage and outage protection, compressor over-pressure, overheat, over-current protection, overload fusing protection,audio signal alarm, water shortage alarm

Power Supply

220V·50HZ/60HZ,380V 50HZ/60HZ


Safety protection:

·Independent temperature limiter: An independent shutdown and alarm for thermal protection purpose during the test.

·Refrigeration system: Over-heat, over-current and over-pressure protection of compressor.

·Test chamber: Over-temperature protection, overheat of fan and motor, phase failure/reverse, timing of the entire equipment.

·Others: Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage protection, and overload protection.


Temperature and humidity curve:


What is the structure of the environmental test chamber for temperature and humidity testing

The structure of an environmental test chamber depends on the manufacturer and model, but typically consists of the following main components:

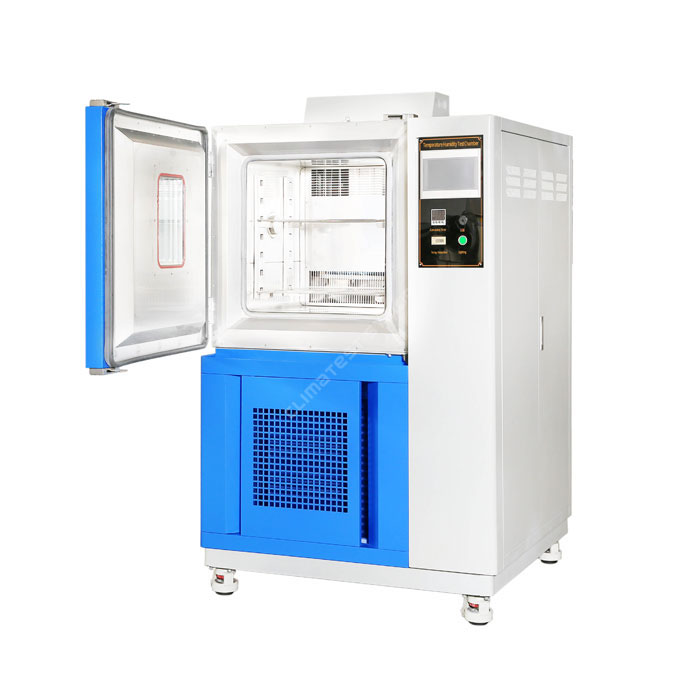

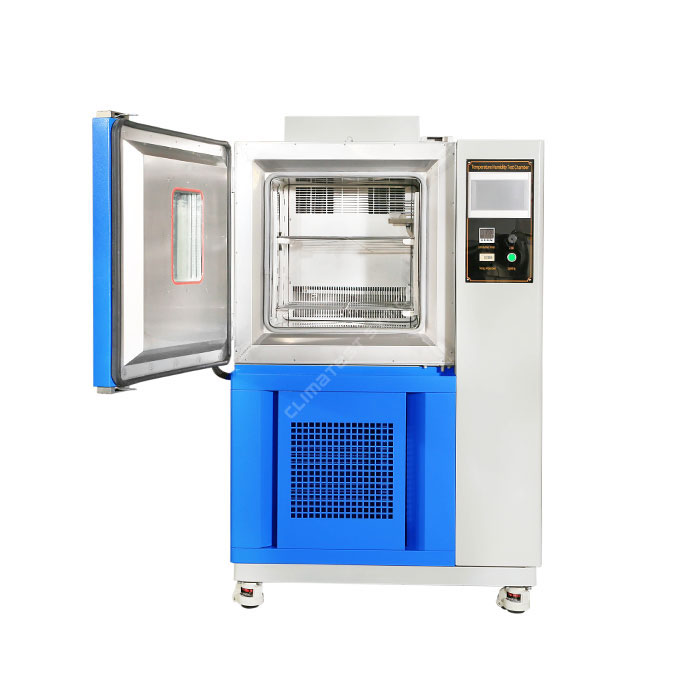

1. Working Chamber: This part is used to create a controlled environment for testing. The chamber is typically made of stainless steel SUS#304 that are durable enough to withstand the extreme temperature and humidity conditions inside.

2. Insulation: To maintain temperature and humidity levels, the chamber is typically insulated with materials such as fiberglass or polyurethane.

3. Heating and cooling system: This system adopts forced air convection to perform heating and cooling tests. To realize temperature humidity control, the test chamber should be able to carry out two functions: heating and cooling, uniform temperature also must be evenly distributed inside the working chamber, Climatest Symor® makes it possible to achieve a high degree of temperature uniformity in the whole testing area.


Environmental test chamber adopts mechanical cooling system and mechanical heating system to conduct testings on products:
Mechanical heating system consists of electric heating elements positioned near the ventilation system, so that the heated hot air is delivered into the testing zone from air inlet, then come out from air outlet, meanwhile, there are centrifugal fans located at the back of the air inlet, so as to blast the hot air to reach better uniformity.

Mechanical cooling system consists of a closed circuit system, with the following main components:

·Control valve

·Condensor

·Evaporator

·Compressor

The refrigeration system in a thermal test chamber is classified to be single stage and double stage, the single stage is adopted with temperature -40℃ and above, and double stage (also called cascade system) is with temperature below 40℃.


4.Humidity control system: The humidity control system is used to control the humidity inside the chamber. This system can include humidifying and dehumidifying systems.

5. Control panel: The control panel is used to operate the test chamber. It typically includes a display for temperature and humidity readings, as well as buttons or knobs for adjusting the temperature and humidity levels.

Programmable LCD touch screen controller:

·7 inch Japan programmable touch screen controller

·Set temperature point under fix value mode or programs mode

·Temperature set point and realtime temperature curve display
·100 groups program with 999 segment memory; each segment 99Hour59Min

·Test data can be downloaded as required through RS232 interface

6. Sample holders: Sample holders are used to securely hold the products or materials being tested inside the chamber. These can be shelves, trays, or other types of holders, depending on the size and type of the products being tested.

7. Door: The door of the test chamber is used to access the interior. The door should be sturdy, airtight, and able to withstand the temperature and humidity conditions inside the chamber.


These are the main components of an environmental test chamber. The exact design and structure of the chamber can vary depending on the manufacturer and model, but these components are typically present in most models.


What is the application of an environmental test chamber for temperature and humidity testing?

Environmental test chambers are used in a variety of industries and applications, including quality control testing, material and product testing, life sciences research, and environmental testing. The chambers can be used to test the effects of extreme temperatures and humidity levels on various materials, products, including:
1.Electronics: Environmental test chambers are used to test the reliability of electronic components, such as semiconductors, circuit boards, and displays, under various temperature and humidity conditions.
2.Automotive: Environmental test chambers are used to test the durability and reliability of automotive components, such as engines, transmissions, and braking systems, under various temperature and humidity conditions.
3.Aerospace: Environmental test chambers are used to test the performance and reliability of aerospace components, such as engines, avionics, and landing gear, under extreme temperature and humidity conditions.
4.Medical Devices: Environmental test chambers are used to test the performance and reliability of medical devices, such as implantable devices, diagnostic equipment, and disposable products, under harsh temperature and humidity conditions.
5.Materials Science: Environmental test chambers are used to test the performance and reliability of materials, such as plastics, metals, and composites, under different temperature and humidity conditions.
In these industries, the use of environmental test chambers helps to ensure that products will perform reliably and consistently under different environmental conditions, and helps identify any potential problems before the product is released to the market.
In addition to product testing, environmental test chambers are also used for environmental stress screening, accelerated aging, and failure analysis. These chambers play an important role in ensuring product quality and reliability in many industries, and are an essential tool for product development and testing.


As an environmental test chamber manufacturer, what is Climatest Symor® committed to do?
Climatest Symor® is typically committed to designing, manufacturing, and delivering environmental test chambers that meet the needs and expectations of our customers. This commitment includes:
1.Ensuring that our products are reliable, and perform as expected in a variety of environmental conditions and test scenarios.
2.Using high-quality materials and components in our products, to ensure durability and longevity.
3.Adhering to relevant industry standards and regulations, to ensure that our products meet safety and quality requirements.
4.Providing excellent customer service to help customers select, install, and use our environmental test chambers effectively.V 5.Continuously improving our products and processes, to meet changing customer needs and industry trends.
6.Minimizing the environmental impact by using sustainable materials and processes.

Overall, Climatest Symor® - an environmental test chamber manufacturer, is committed to meeting the needs of their customers while upholding high standards of quality, safety, and environmental responsibility.


What is the price of an environmental test chamber for temperature and humidity testing?
An environmental test chamber can vary widely depending on several factors, such as the size of the chamber, the type of controls and features, and the manufacturer. It's important to consider not only the purchase price of the chamber, but also the long-term costs of operating and maintaining the chamber, including electrical usage, replacement parts, and servicing.
Ultimately, the cost of a climatic test chamber will depend on the specific requirements of your application, and it's essential to carefully evaluate your needs and budget to determine the right chamber for your needs.


How to pack and ship an environmental test chamber for temperature and humidity testing?

The packaging and shipment of an environmental chambers can impact its safety and performance. Proper packaging and shipment are important to prevent damage during transportation and ensure that the chamber arrives at its destination in good condition. Here are Climatest Symor® general guidelines for packaging and shipping a constant temperature and humidity test chamber:
1.Packaging materials: Use high-quality, shock-absorbing materials, such as foam or bubble wrap, to protect the chamber during transportation. You may also want to use a sturdy shipping crate to further protect the chamber.
2.Handling: The chamber is handled with care to prevent damage. It's important to use the right equipment, such as a forklift or pallet jack, to lift and move the chamber.
3.Labeling: Clearly label the chamber with "Fragile" and "This Side Up" stickers to ensure that it is handled with care during transportation.
4.Shipping method: The chamber is shipped by sea, Climatest Symor® team makes vessel booking in advance according to the size, weight, and destination of the chamber, the local transport is normally a truck.
It's important to work with a reliable and experienced shipping company to ensure that the environmental test chamber is packaged and shipped properly. Proper packaging and shipment can help ensure that the chamber arrives at its destination in good condition and is ready for use.


How to install an environmental test chamber for temperature and humidity testing?

Installing an environmental test chamber for controlling temperature and humidity requires a few steps to ensure proper operation and safety. Here is a general outline of the process:
•Choose a location: Select a room that can accommodate the size of the climate chamber and that has access to electrical power and ventilation.
•Prepare the floor: Make sure the floor can support the weight of the climate chamber and is level to prevent tipping.
• Assemble the chamber: Follow the manufacturer's instructions to assemble the climate chamber, including connecting any electrical components.
• Install the power supply: Connect the climate chamber to a power source that can handle the electrical requirements of the chamber. Make sure to use a properly rated circuit breaker and power cord.
•Connect the ventilation: Make sure the climate chamber has proper ventilation to remove excess heat and moisture.
•Install temperature and humidity controls: Connect the temperature and humidity controls to the climate chamber and calibrate them according to the manufacturer's instructions.
•Test the system: Turn on the climate chamber and check that it is functioning properly. Monitor the temperature and humidity levels and make any necessary adjustments.
It is important to follow the manufacturer's instructions and all applicable safety guidelines when installing a climate chamber.
A: ≥60cm B: ≥60cm C: ≥120cm
Attention: inclination should not exceed 15°C
