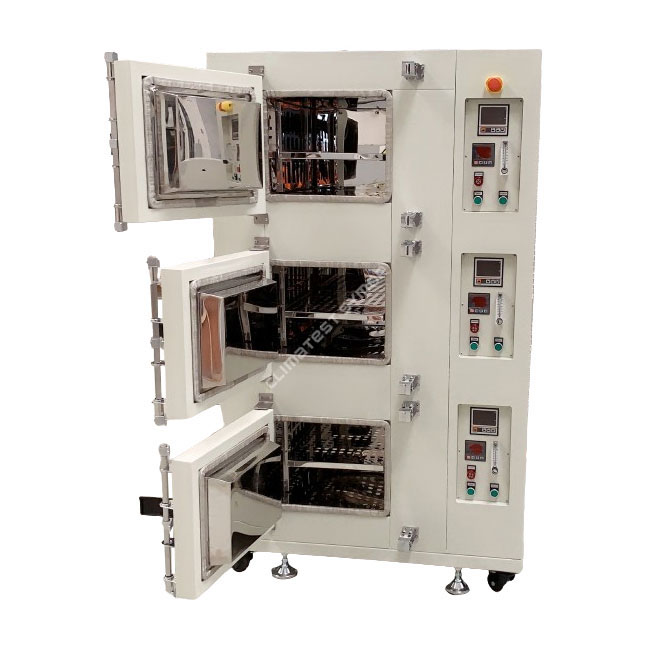

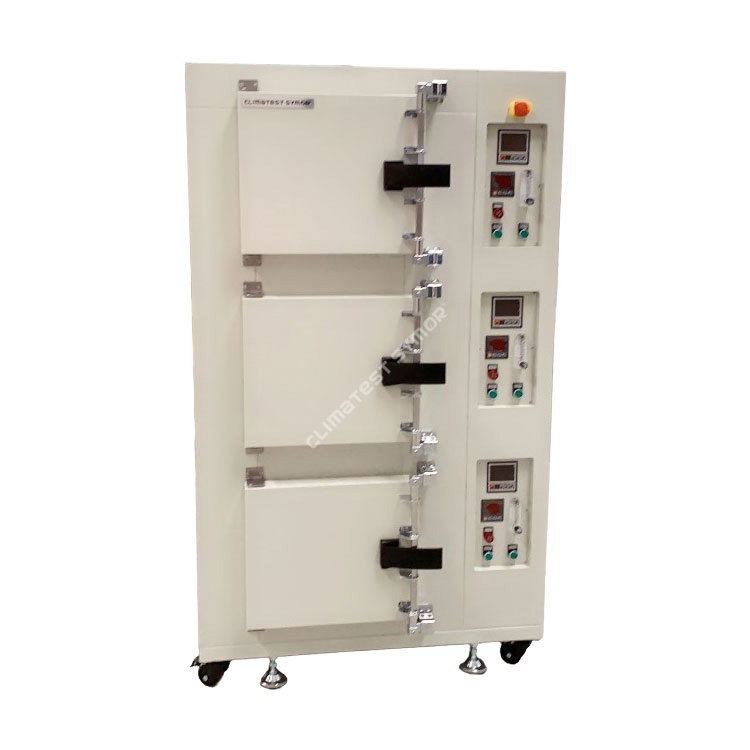

Temperature uniformity is the core performance index of high-temperature curing ovens, directly determining the precision of industrial curing, sintering, annealing and laboratory thermal experiment results. Uneven internal temperature will lead to inconsistent product curing effect, unqualified material performance and low experimental repeatability. Modern high-end 600°C high temperature curing ovens represented by Climatest Symor® TBPZ series adopt professional forced air convection design, which completely solves the temperature deviation problem of traditional natural convection ovens. This article deeply analyzes how the forced air convection system achieves ultra-high temperature uniformity inside the oven.
1. Industry Pain Points of Traditional Curing Ovens
Most ordinary industrial ovens rely on natural hot air circulation for heating, which has obvious technical defects in high-temperature environments (above 300°C):
Large temperature deviation: Hot air rises and cold air sinks naturally, resulting in obvious temperature difference between the top, bottom, left and right of the oven cavity
Local overheating or underheating: Heating elements are locally concentrated, causing partial product over-curing or incomplete curing
Poor experiment repeatability: Unstable temperature environment affects chemical synthesis, material sintering and precision heat treatment processes
Low product yield: Uneven heating leads to inconsistent finished product quality, increasing production scrap rate
In contrast, the forced air convection structure of Symor TBPZ series high-temperature curing ovens actively drives hot air circulation, realizing balanced heating of the entire cavity, with temperature uniformity up to ±1.5% and temperature fluctuation controlled within±1.0°C.
2. Core Composition of Forced Air Convection System
The excellent uniform temperature performance of the curing oven comes from the integrated optimization of multiple core components. The forced air convection system consists of four core parts, which cooperate efficiently to form a stable hot air circulation loop:
High-temperature resistant power air supply device: Equipped with long-shaft silent motor and stainless steel turbine blade, specially customized for 600°C high-temperature environment. The turbine adopts horizontal correction treatment to ensure smooth and stable air output without abnormal vibration
High-density punching air duct plate: The unique air duct structure is matched with dense air outlet holes, so that the hot air can be evenly dispersed to every corner of the oven cavity, avoiding air dead angles
High-efficiency NiCr heating elements: Stainless steel dust-free heating wires heat the circulating air quickly and evenly, providing stable and continuous heat source for convection circulation
Intelligent PID constant temperature control system: Real-time monitoring and dynamic adjustment of temperature parameters to ensure synchronous matching of air volume and heating power
3. How Forced Air Convection Achieves Precise Uniform Temperature
The forced air convection design breaks the limitation of natural air flow and realizes active, cyclic and balanced heating through mechanical power. The working principle is divided into three core links:
3.1 Active Full-Cavity Hot Air Circulation
The vertical or horizontal air supply mode is adopted to forcibly drive the hot air inside the oven to circulate in a closed loop. The hot air no longer flows randomly with temperature difference, but continuously and evenly washes the surface of the workpiece, realizing no dead-angle heating in the entire 30L-200L oven cavity.
3.2 Balanced Heat Distribution of Punching Air Duct
The high-density punching air plate disperses the concentrated hot air flow into uniform fine air flow, which solves the problem of local overheating caused by direct blowing of heating elements. Whether it is the upper layer, lower layer or edge position of the stainless steel adjustable shelf, consistent temperature conditions can be obtained.
3.3 Dynamic Temperature Correction & Stabilization
Cooperated with PID intelligent temperature controller and SSR solid state relay, the system monitors the cavity temperature in real time with 0.1°C ultra-high resolution. It automatically adjusts heating power and air volume speed, quickly balances local temperature difference, and maintains long-term stable uniform temperature state.
4. Unique Advantages of Symor TBPZ Convection Heating System
Adapt to ultra-high temperature 600°C operation: The whole air supply system is resistant to high temperature and aging, and can maintain stable convection efficiency during long-term continuous high-temperature curing and sintering work
Complete safety protection mechanism: Equipped with motor over-current, overload and over-temperature protection functions, which avoids fan failure and ensures long-term stable operation of the convection system
Wide environmental adaptability: It can work stably in the ambient temperature range of 5°C to 40°C, and is not affected by external temperature changes
Improve production and experiment consistency: Uniform temperature environment ensures consistent curing degree of batch workpieces and repeatable laboratory experimental data
5. Practical Application Value of Uniform Temperature Convection Design
The forced air convection uniform temperature technology brings core value to industrial production and scientific research scenarios:
Industrial curing: Ensure uniform drying and cross-linking of coatings, adhesives and paints, improve surface adhesion and flatness of products
Metal heat treatment: Realize stable annealing, tempering and quenching effects, and consistent metal material hardness and performance
Laboratory research: Provide precise and stable high-temperature environment for chemical synthesis, material sintering and thermal decomposition experiments
Cost reduction and efficiency improvement: Reduce product defective rate and repeated experiments, shorten processing cycle, and save energy consumption and production costs
6. Conclusion
Forced air convection design is the core technology to solve the temperature uniformity problem of high-temperature curing ovens. Through active mechanical circulation, uniform air duct heat distribution and intelligent temperature dynamic adjustment,
Climatest Symor® TBPZ series curing ovens achieve ultra-high temperature uniformity of ±1.5% and stable fluctuation of ±1.0°C under 600°C high temperature.
This mature convection heating system makes the
high temperature curing oven widely applicable in electronics, automotive, chemical, aerospace and university laboratory research fields, providing reliable and precise high-temperature thermal processing solutions for global industrial and scientific research users.
