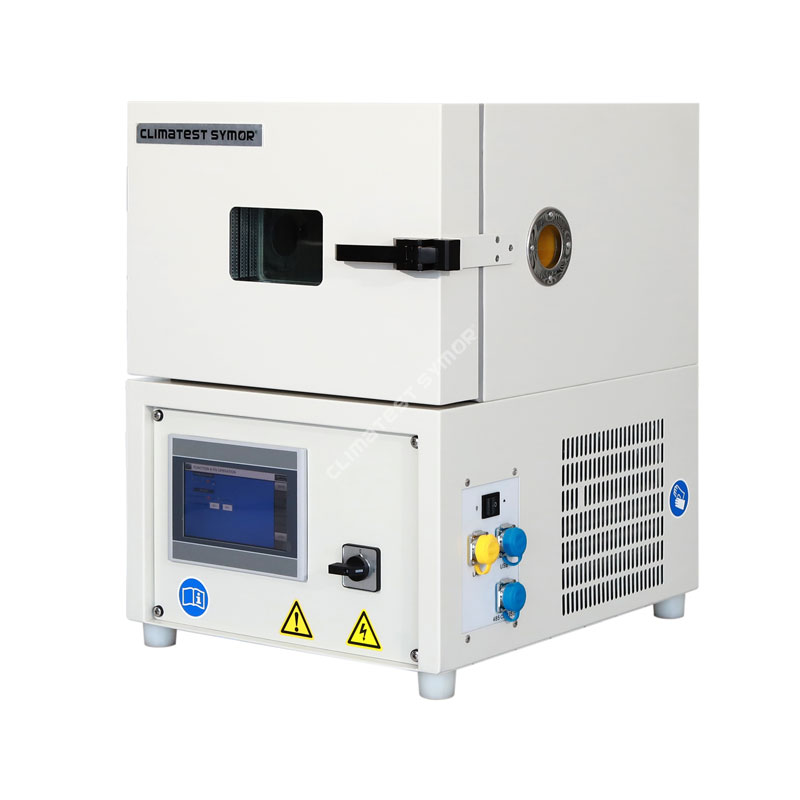

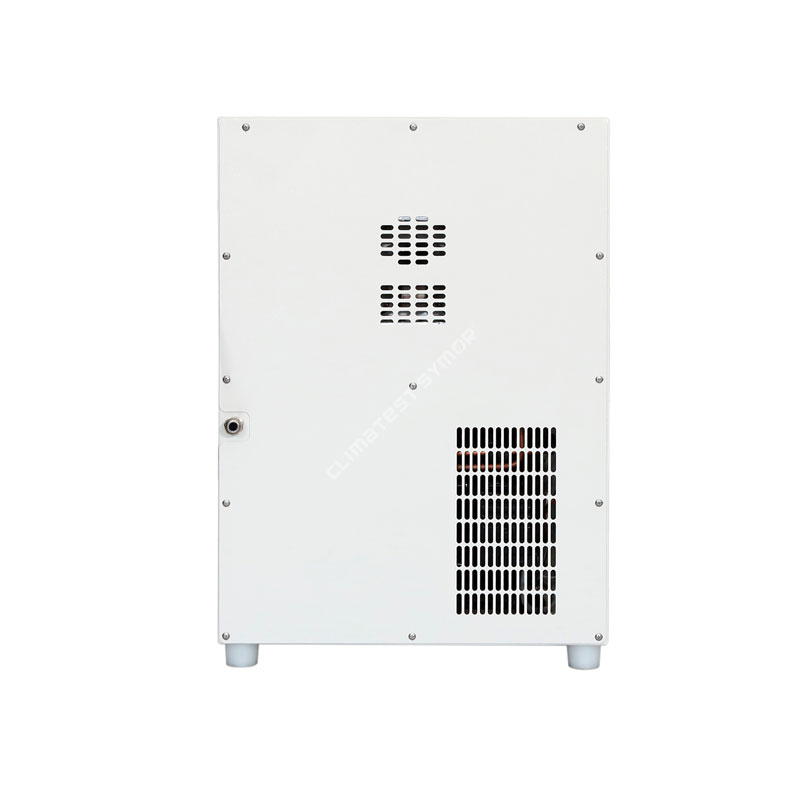

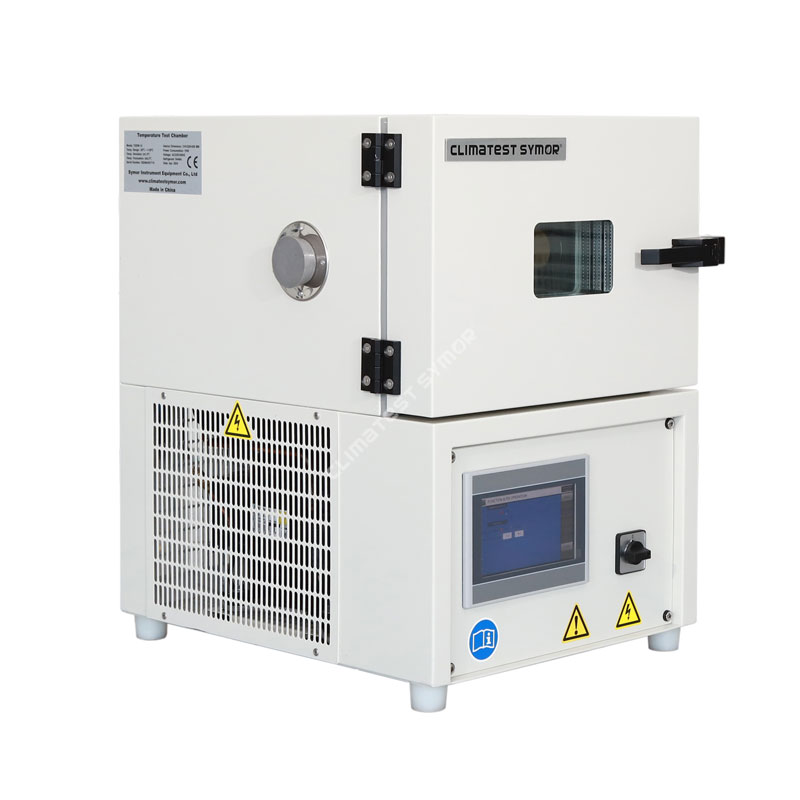

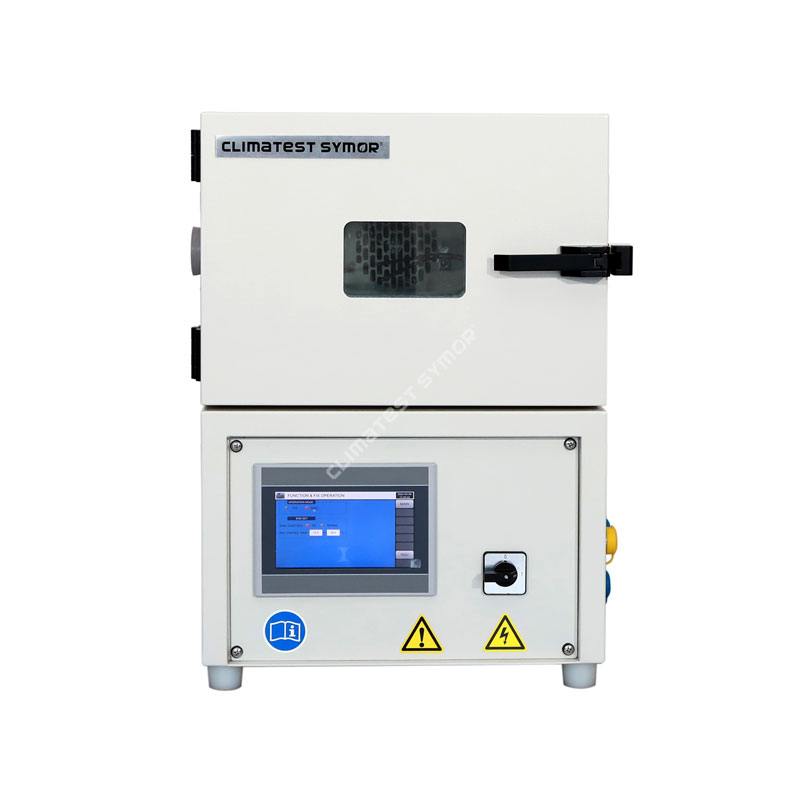

Mini Thermal Chamber

Climatest Symor® manufactures cost-effective mini thermal chamber, the benchtop design is tailor-made for the smaller specimen in limited space laboratory, mini thermal chamber offers the ideal conditions to test the resistance of specimens against extreme temperatures, and provides an optimal testing solution with a compact volume of 12L, 22L, and 36L, it combines the advantages of high durability with excellent working performance, mini thermal chamber becomes the best seller in laboratores and research institutes.

Model: TGDW-36
Capacity: 36L
Shelf: 1pc
Color: Off white
Interior dimension: 400×300×300 mm
Exterior dimension: 760×550×900 mm

Send Inquiry

Product Description

Description:

Climatest Symor® provides good quality mini thermal chamber at factory price/affordable price, mini thermal chamber is small enough to be placed on the benchtop, it provides accurate, precise PID control of temperature levels, with easy installation and convenient operation procedures, the user is able to perform different temperature tests with a range of -40°C~+130°C.



Specification

Model TGDW-12 TGDW-22 TGDW-36
Interior Dimension(W*D*H) 310×205×200 mm 300×250×300 mm 400×300×300 mm
Exterior Dimension(W*D*H) 450×500×610 mm 700×440×700 mm 760×550×900 mm
Temperature Range Model A :-20°C~+130°C    Model B: -40°C~+130°C
Temperature Fluctuation ≤±0.5°C
Temperature Bias ≤1.0°C
Temperature Uniformity ≤1.5°C
Heating Rate +25℃~+130℃≤50 minutes(unload)
Cooling Rate +25℃~-40℃≤45 minutes(unload)
Interior Material Anti-corrosion SUS#304 brushed stainless steel
Exterior Material Reinforced Steel plate with electrostatic spraying
Insulation Superfine fiberglass wool / polyurethane foam
Controller 7” Japan original imported UNIQUE(UMC) touch screen controller
Circulation System Low-noise, high temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan
Heating System NiCr heater, independent system
Refrigeration System France "TECUMSEH" Refrigeration Compressors, air cooling
Power Supply AC110V/220V/AC230V·50HZ/60HZ

Safety protection:

·Independent temperature limiter: An independent shutdown and alarm for thermal protection purpose during the test.

·Refrigeration system: Over-heat, over-current and over-pressure protection of compressor.

·Test chamber: Over-temperature protection, overheat of fan and motor, phase failure/reverse, timing of the entire equipment.

·Others: Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage protection, and overload protection.


Programmable controller advanatages:

·7 inch Japan programmable touch screen controller

·Set temperature point under fix value mode or programs mode

·Temperature set point and realtime temperature curve display

·100 groups program with 999 segment memory; each segment 99Hour59Min

·Test data can be downloaded as required through RS232 interface


Features:

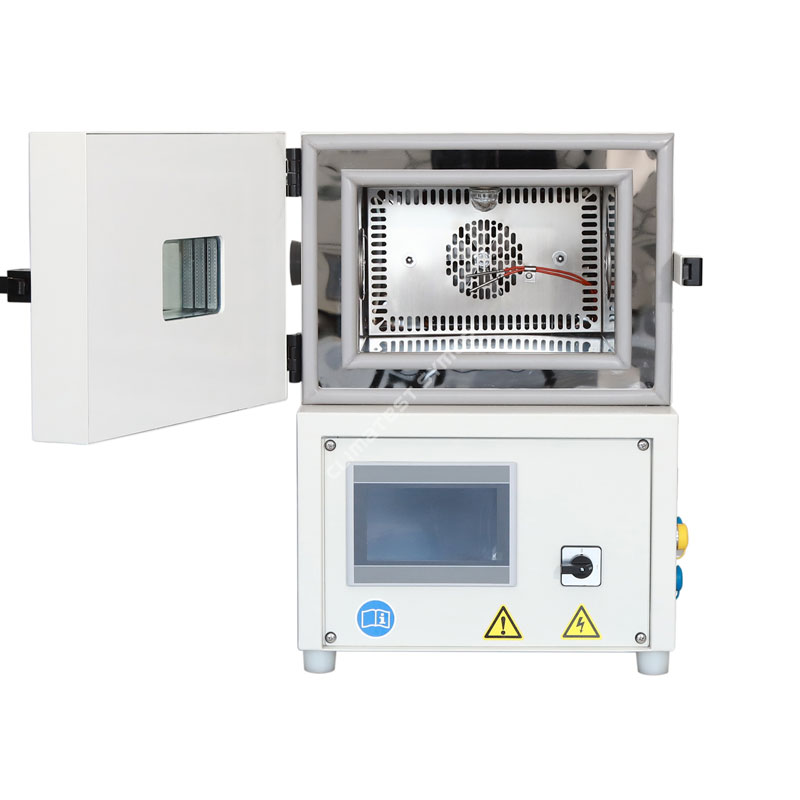

·Working zone is made by anti-corrosion SUS#304 brushed stainless steel

·Superipr door sealing made by reinforced silicone rubber, that is high temperature resistant and aging resistant

·Uniform air circulation system inside working zone

·Original imported France "Tecumseh" refrigeration compressors

·25mm diameter cable port locates at the right side

Effective transparent viewing window and lighting inside for easy observation


Benifits:

·Easy installation
·Precise temperature control in small chamber
·Desktop type designed for limited space laboratory
·Over-temperature limiter


·Japan programmable LCD controller
·Record 365 days history data
·Temperature & humidity realtime and history curve display
·RS232 computer interface for data download


Application:

As a reliability test equipment for quality control engineering, mini thermal chamber simulates high temperature, low temperature, temperature alternating environment to test various products and materials’ performance to withstand continuous harsh climate conditions, mini thermal chamber is applicable to below industries:


Electronic& Semiconductor Industry:

The mini thermal chamber is able to evaluate damages to insulation materials, sticking of contacts, performance changes, and adverse reaction of electronic components. Morever, if semiconductor devices, such as integrated circuits, liquid crystals, silicon wafers, are stored in a high humidity environment for a long time, the pads and chip pin surfaces are easy to be oxidized, and cause failures such as poor contact.

·Electronic components, such as: capacitors, inductors, resistors, diodes, triodes, sensors, PCB boards;

·Electrical appliances, such as: telephones, fax machines, auto parts and electrical products;

·Electronic product, such as optical fiber, LCD, crystal, photovoltaic module, battery, computer, mobile phone;


Plastics Industry:

Plastic enclosure and containers are widely used in normal life, involving in household appliances, instrumentation, construction equipment, automobile industry, daily hardware and more, plastic products are increasing rapidly in recent years, to improve quality and competitiveness, manufacturers now pay more attention to the reliability testing of their plastic products.

For example, lighting products life span is affected by high temperature, low temperature and damp environment. In addition, due to uncertain factors in the molding process, and the influence of environmental conditions after assembly, the fixed position of the insert nut inside the plastic enclosure will appear natural cracking and rupture phenomenon, these problems can not appear in short time, but is accumulated to a certain extent, resulting in the function failures, hidden dangers, it brings bad use experience to users.

mini thermal chamber simulates harsh envionment, like high temperature, low temperature, high and low temperature alternating, to help manufacturers detect defects of their plastic enclosure in a short time, mini thermal chamber provides them a very valuable data collection during R&D stage, and greatly improve the production efficiency and save the cost.


Automobile Industry:

In automobile industry, mini thermal chamber is one of the most crucial environment testing equipments, products are like going through a "torture" through environmental testing, automobile and automobile parts are tested, problems are explored and initial product design plans are repeatedly revised, so as to continuously improve products, in order to achieve maximum adaptation to the working environment during the entire life cycle.

mini thermal chamber is also applied in Communication, Pharmaceutical, Military and Packaging industries, different testing requirments are carried out by simulating the natural and accelerated environment, mini thermal chamber is a common equipment to provide reliability environment testing, it can efficiently detect the performance changes of products in different environments, and plays an important role in product research and development stage.


Do you have small specimens required to do test?

Climatest Symor® mini thermal chamber is able to conduct high low temperature tests for small samples in development and research stage, a temperature range of -70℃ to +180℃ makes it possible to test resistance of samples against extreme temperature changes. Benchtop temperature test chamber is designed to provide users with a compact unit for testing small components and products, and to meet various testing needs, the operation is environmental and quiet, mini thermal chamber is the best seller in laboratories with limited space.


What is the refrigeration principle of mini thermal chamber?

The refrigeration circulation adopts reverse Carnot cycle, it includes two isothermal processes and two adiabatic processes: the refrigerant is compressed to high pressure through adiabatic compression of compressor, and then the refrigerant conduct heat exchange with ambient medium and transfer heat to these mediums isothermally. After then, refrigerant works by adiabatic expansion through cut-off valve, and the temperature of refrigerant decline. Finally, refrigerant absorbs heat from objects of high temperature isothermally through evaporator to reduce the temperature of the objects to be cooled. This cycle shall repeat to realize temperature decrease.


What are advantages of Climatest Symor® mini thermal chamber?

Being a mini thermal chamber manufacturer, Climatest Symor® has below advantages:

·With independent intellectual property rights and design patents and master the environmental test chamber core technology.

·The controller is easy-to-operate Japan LCD programmable which can be remotely controlled (optional).

·Accurate temperature control and optimal temperature uniformity.

·The refrigeration system uses France original imported compressors.

·Lighting system adopts high-temperature-aging resistant light beads, muti-layers of tempered glass on viewing window for easy observation.

·Equipped with multi-safety protection devices.


How to pack mini thermal chamber?

First step: Wrap thin film onto the whole temperature test chamber for waterproof and dustproof purpose.

Second step: Bind bubble foam on temperature test chamber tightly, and then cover the machine with a big plastic bag.

Third step: Put temperature test chamber into a reinforced polywood case with pallet at bottom.

This package is firm enough to withstand bumpy sea and railway transportation, and ensure the product is delivered to customers smoothly.


How to ship mini thermal chamber?

mini thermal chamber doesn’t suit air shipment, because there is refrigerant and compressor inside, currently following is the most common shipment method:

To Europe: By sea, China-EU railway

To North America/South America: By sea, Matson Clipper is limited to United States

To Southeast Asia: By sea, by road

To New Zealand/Australia: By sea

To Africa: By sea

Climatest Symor® arranges booking service before shipment, and cooperate with customers under different incoterms, such as CIF/FOB//EXW/DAP; Climatest Symor® also provides door to door service (incoterm: DDP), that means we handle all export and import procedures, customers just need to sign for receipt.
