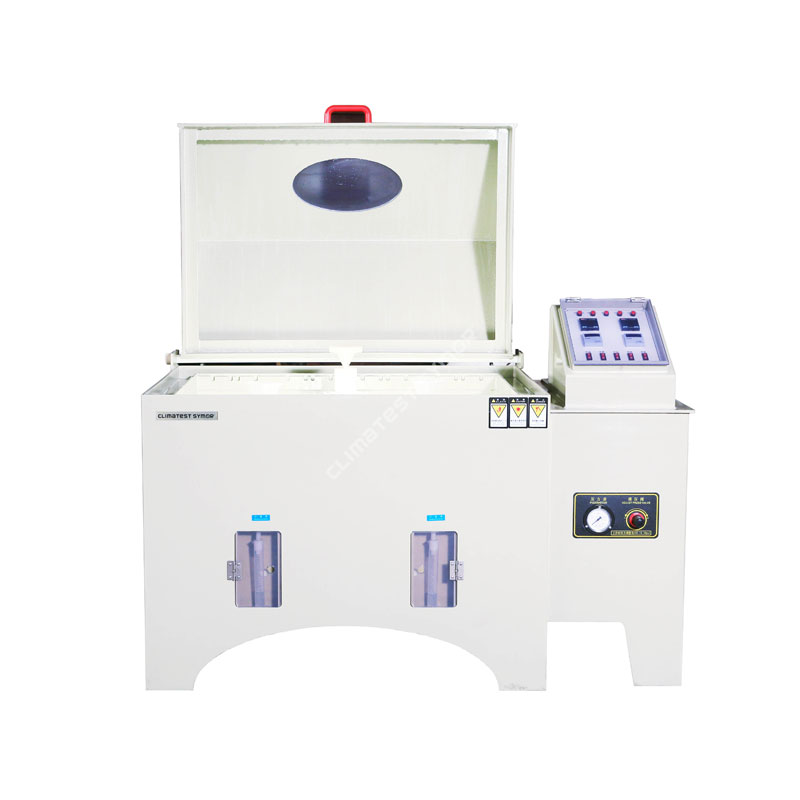

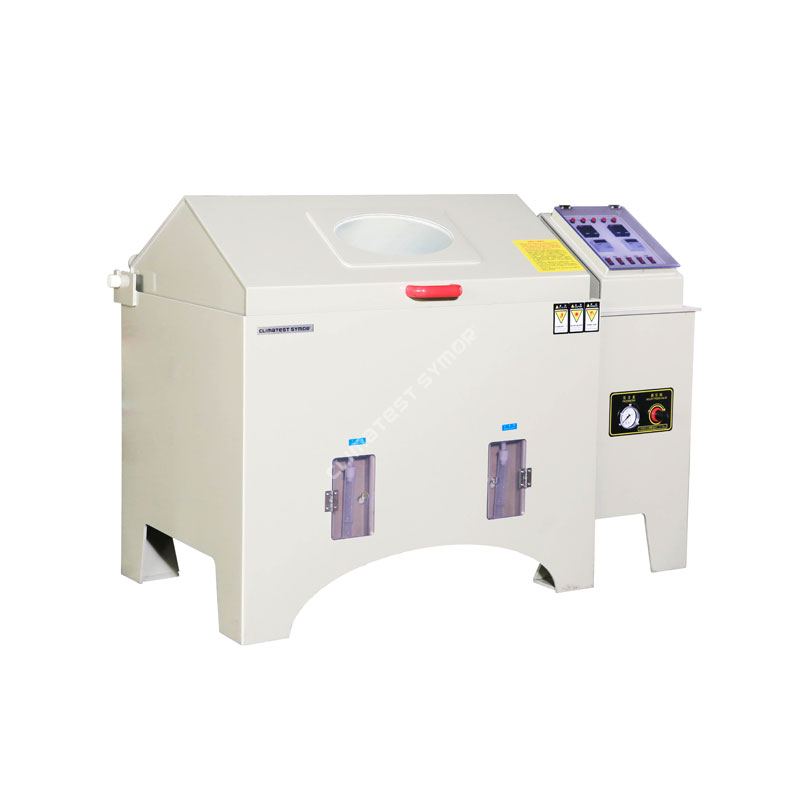

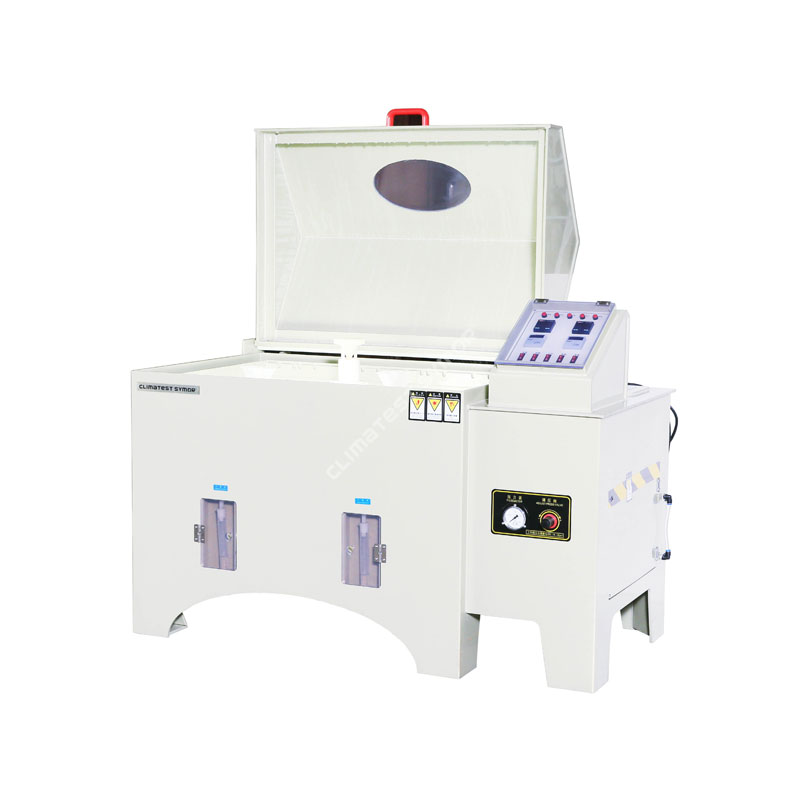

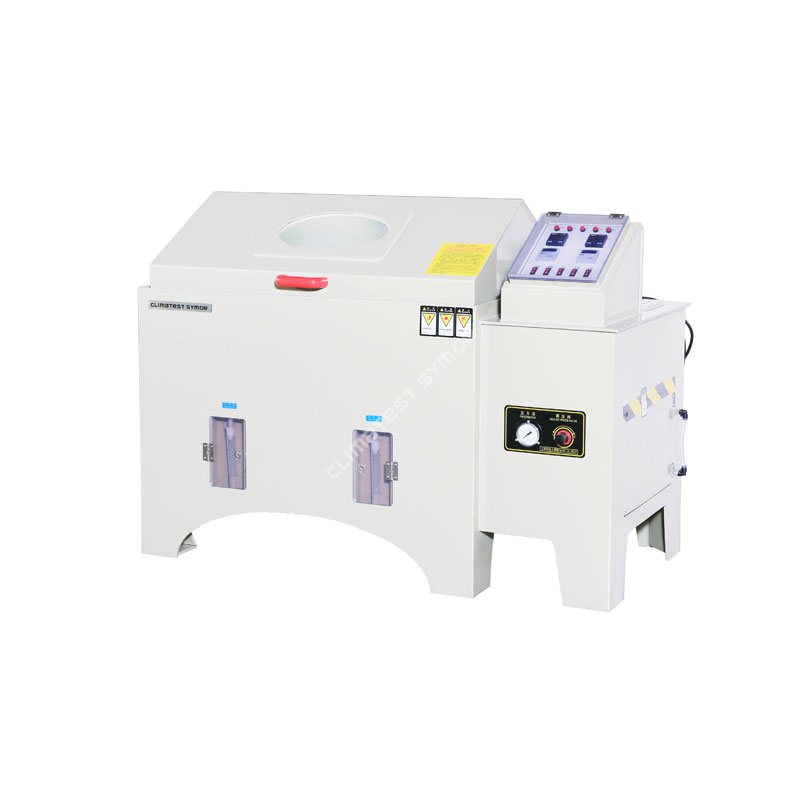

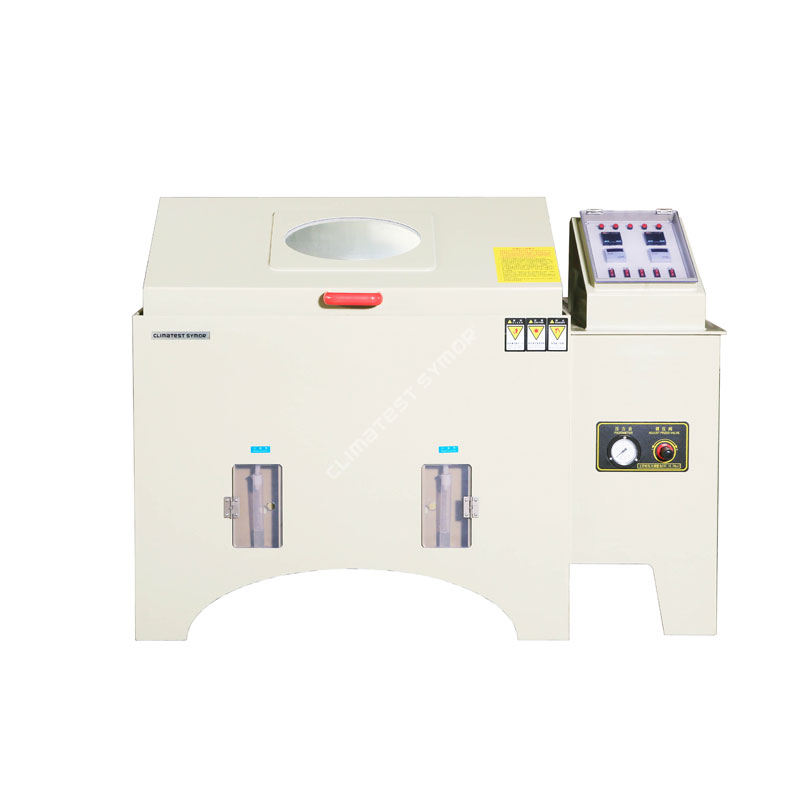

Salt Spray Chamber

Climatest Symor® is salt spray chamber manufacturer and supplier in China, customers purchase salt spray chamber to test the corrosion resistance of their materials, components, and structures, as well as the performance of protective coatings and finishes, specimen are exposed to a salt fog environment. The temperature and humidity can be controlled to simulate a variety of different environments.

Model: TQ-150
Capacity: 150L
Interior Dimension: 600*450*400 mm
Exterior Dimension: 1150*560*1100 mm

Send Inquiry

Product Description

Description

Climatest Symor® manufactures good quality salt spray chambers. To proceed accelerated corrosion testing, salt spray chamber is a must have equipment. The chamber is designed to simulate the corrosive effects of salt solution, in order to evaluate the performance and durability of their products. Salt mist chambers are mainly applied to test various materials, such as metals and plastic parts, as well as components and systems in the automotive, aerospace, and marine industries.


Specification

Model

TQ-150

TQ-250

TQ -750

TQ-010

TQ-016

TQ-020

Interior Dimension

(W*D*H, MM)

600*450*400

900*600*500

1100*750*500

1300*850*600

1600*850*600

2000*900*600

Exterior Dimension

(W*D*H, MM)

1150*560*1100

1400*850*1200

1650*950*1300

2000*1100*1400

2400*1150*1500

2800*1200*1500

Capacity

108L

270L

495L

663L

816L

1080L

Temperature Range

NSS, ACSS: 35°C±1.0°C / CASS: 50°C±1.0°C

Satuation Barrel Temp.

NSS, ACSS: 47°C±1.0°C / CASS: 63°C±1.0°C

Salt Solution Temp.

35°C±1.0°C

Temp. Uniformity

≤2°C

Temp. Fluctuation

± 0.5°C

Salt Mist Deposition

1~2 ml / 80cm2

Spraying Mode

Continuous,periodic (Alternative)

Timing

1~9999(H,M,S), adjustable

Spraying System

Tower-type spraying device, non crystallization nozzles

Nozzle made by special glass to spread mist evenly, continuous use of 4000 hours without crystallization.

Controller

LED controller

Interiorl Material

Reinforced high-intensity PP plates, corrosion resistant, high temperature resistant, aging resistant

Exterior Material

Reinforced high-intensity PP plates, corrosion resistant, high temperature resistant, aging resistant

Tank Cover Material

High-intensity PVC or PP plate, corrosion resistant

Sealing

Watertight sealing structure without salt mist overflow

Safety Devices

Over-temperature, default phase protection, water shortage protection

Std Configuraton

Spraying tower, V-shaped specimen shelf, round bar, funnel, measuring cup

Supply Voltage

AC220V·50HZ/380V·50HZ

Ambient Condition

+5~30℃

Meeting standards: IEC 60068, ISO 9227, ASTM B287, ASTM G85 A1, ASTM B368, JISZ 2371, DIN 50021, not limited to.


Complied Tests:

Neutral Salt Spray Test (NSS)

Acetic Acid Salt Spray Test (AASS)

Copper Accelerated Acetic Acid Salt Spray Test (CASS)


Climatest Symor® Salt Spray Chamber feature:

Salt Spray Chamber is designed to provide a controlled and repeatable environment, for testing corrosion resistance of components or materials. The cabinet provides accurate temperature & humidity control, as well as uniform spray of saline solution. It also comes with a range of features, including:

• Digital display: To monitor and control temperature, humidity, and salt spray output.

• Corrosion-resistant structure: Salt Spray Chamber is typically constructed from corrosion resistant materials, such as PP or PVC.

• Tower-type spraying nozzle: A special glass nozzle dispenses a fine mist of salt solution onto the test specimens, 4000 hours continuous spraying withour crystallization.

• Safety protection: Salt Spray Chamber has safety devices, such as over-temperature protection, automatic shut-off systems to ensure safe and reliable operation.


What does Salt Spray Chamber do?

A Salt Spray Chamber can simulate the corrosive effects of salt water on materials. Specimen are exposed to a mist of salty water, which is then allowed to dry and form a salty film on the surface. The specimen is then placed in a humidity-controlled environment to allow the salt to continue to corrode the surface of the specimen and to observe the effects of the corrosion. This type of testing is able to evaluate the corrosion resistance of materials in a marine environment.

The test helps to determine the ability of materials to resist corrosion in different environments. It is also used for evaluating the effectiveness of protective coatings and finishes applied to materials. It is a very important test in industries where corrosion protection is essential.

How to use Salt Spray Chamber?

To use salt spray testing, the sample material is first mounted on a specimen holder in a salt spray chamber. The chamber is then filled with a salt solution and the sample is exposed to the salt solution for a certain period of time. During this exposure, the sample is tested for the appearance of corrosion or other signs of degradation. If corrosion occurs, the severity and type of corrosion can be determined. The results of the salt spray test can then be used to evaluate the effectiveness of a corrosion protection system.


Benefits from Climatest Symor® Salt Spray Chamber

The benefits that you can get from Climatest Symor® Salt Spray Chamber include:

1. Ensuring product reliability: This type of testing allows manufacturers to ensure that their products can withstand extreme temperatures, which can help ensure the quality and reliability of their products.

2. Improving product safety: Temperature shock testing can help to reduce the risk of product failure due to sudden temperature changes, which can lead to improved safety for both users and the environment.

3. Cost saving: By testing products in a temperature shock chamber, manufacturers can save money on product testing, as they can test many products at once and use fewer resources in the process.

4. Increasing customer satisfaction: By ensuring that their products meet quality and reliability standards, manufacturers can increase customer satisfaction, leading to increased sales and profit.
