Small Drying Ovens

Description

One advantage of small drying ovens is their ease of use and portability. They can be easily moved and positioned on a laboratory bench or table, and do not require any special installation or setup. The ovens feature programmable temperature control, digital displays, alarms, timer, and over temperature limit protection.

Specification

Feature

• Uniform temperature control

• Quickly heat and dry samples, able to heat samples up to 200°C

• Stainless steel sus#304 inner oven and powder-coated steel plate exterior oven, corrosion resistant

• Low energy consumption, cost saving

• PID digtal display controller brings you accurate and reliable temperature control

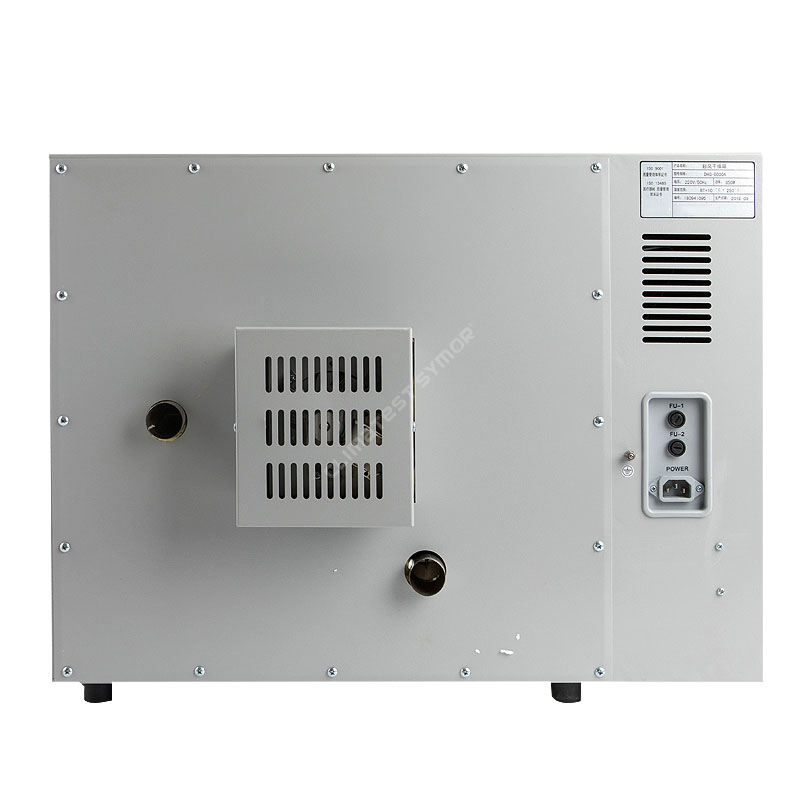

Structure

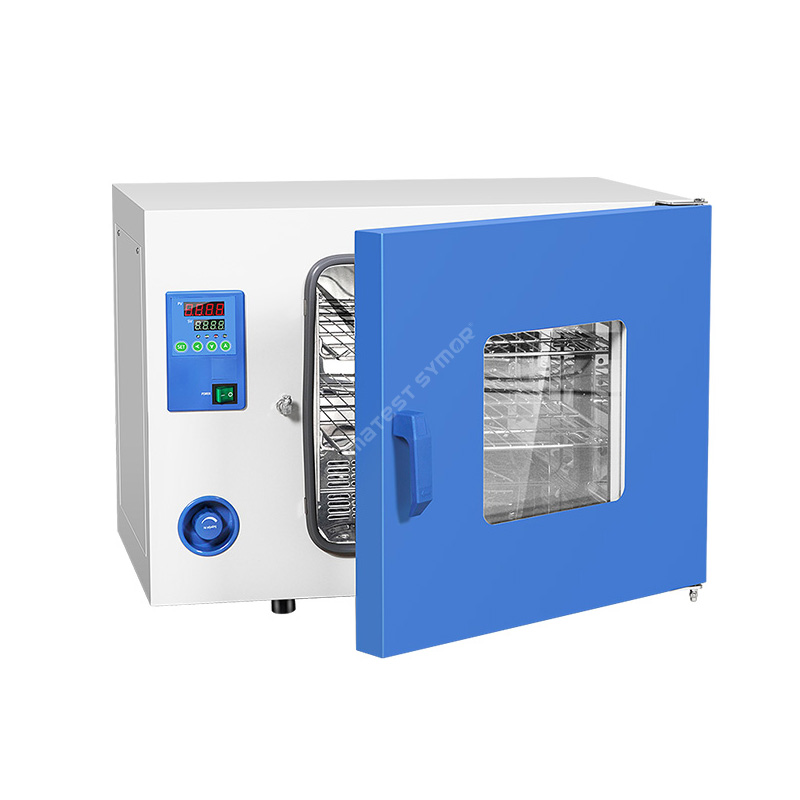

Small drying ovens generally consist of the following components:
• Interior Oven: Made from rust-resistant stainless steel SUS#304
• Heating Element (Heater): Made of stainless steel SUS#304, it generates heat within the chamber.
• Circulation Blower: The forced air convection helps ensure uniform temperature distribution and faster drying.
• Temperature Control System: A digital temperature controller allows users to set and maintain a specific temperature.
• Shelving or Racks: Samples or materials are placed on the shelves, they are removable and adjustable to accommodate different sample sizes.
• Safety Features: Over-temperature limit protection and alarms.

The structure of small drying ovens is designed to provide precise temperature control, even heat distribution, and a controlled environment for various drying and heating applications in laboratory and industrial settings.

Application

Small drying ovens are used to remove moisture from electronic components during electronic manufacturing processes. Here are examples of applications:

Surface Mount Technology (SMT): During the SMT process, electronic components are placed on PCB (printed circuit board) using a pick-and-place machine. After the components are placed, the boards go through a reflow oven where the solder paste is melted to connect the components to the board. Since the components and boards may absorb moisture during the process, small drying ovens remove excess water and prevent potential failures due to moisture penetration.

Wave Soldering: Wave soldering involves passing the bottom of the PCB over a pool of molten solder, which creates a solid joint between the PCB and electronic components. Before wave soldering, the PCB is washed with water-soluble flux to remove any oxidation from the board. The PCB is then passed through small drying ovens to remove remaining moisture before wave soldering, so that the oxidation does not turn into contaminants during the soldering process.

Potting and Encapsulation: To protect electronic devices from moisture, it's common practice to coat the device with a potting or encapsulation material that is waterproof. These materials usually contain a curing process that requires high temperature baking to ensure the complete curing of the material. Placing the devices into the small drying ovens can cure the potting or encapsulation material.

Solder Paste Application: Solder paste is commonly used to attach electronic components to PCB before reflow soldering. The paste is made of metal particles and flux which are mixed into a paste form. Since the solder paste absorbs moisture, it is critical to dry the paste before use. Small drying ovens remove water from the solder paste, ensuring it adheres properly and doesn't cause weak solder joints.

Excess moisture may cause electronic components to malfunction or degrade over time, ultimately rendering them useless. Hot air ovens are essential in modern electronics manufacturing industry. These baking instruments efficiently help avoid potential failures by removing moisture inside the components during the manufacturing process.

General operation steps:
Here are general steps for baking them in a hot air drying oven:
• Preheat the oven to the required temperature.
• Place the materials onto a shelf, make sure to keep some distance between them
• Set temperature and baking time on the digital display.
• Monitor the temperature during the baking process.
• Once the baking time is complete, the oven stops working automatically, please allow the materials to cool down before removing them.

It's important to note that some materials are sensitive to high temperature, so it's essential to follow the recommended baking temperature and time to avoid damaging them. Additionally, baked materials should be stored in a dry environment to prevent moisture from re-entering the drying process.

How do small drying ovens work?
During baking process, the heating element heats the air, and the circulation fan circulates the hot air throughout the whole drying chamber. As the hot air circulates, it absorbs water from the products being baked. The moisture-laden air is then exhausted through the ventilation system, and the dry hot air is circulated again to continue the drying process. Repeat this cycle is until the setting temperature is achieved.

In summary, small drying ovens create a controlled environment, samples or materials are applied in these ovens, leading to the moisture removal. Precise temperature control, even heat distribution, and a controlled atmosphere inside the chamber make them suitable for various laboratory, research, and industrial applications.
