Climate Chamber Price

Looking for the price of a climate chamber? Find it here at Climatest Symor® - China trusted environmental test chamber manufacturer. A climate chamber price is decided by several factors, such as the size of the chamber, the type of controls and features, and the manufacturer. It's important to consider not only the purchase price of the chamber, but also the long-term costs of operating and maintaining the chamber, including electrical usage, replacement parts, and servicing.

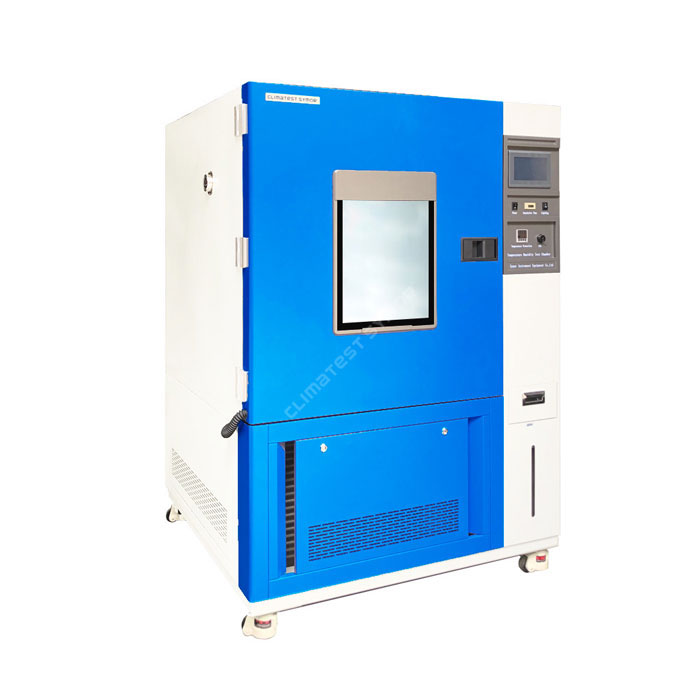

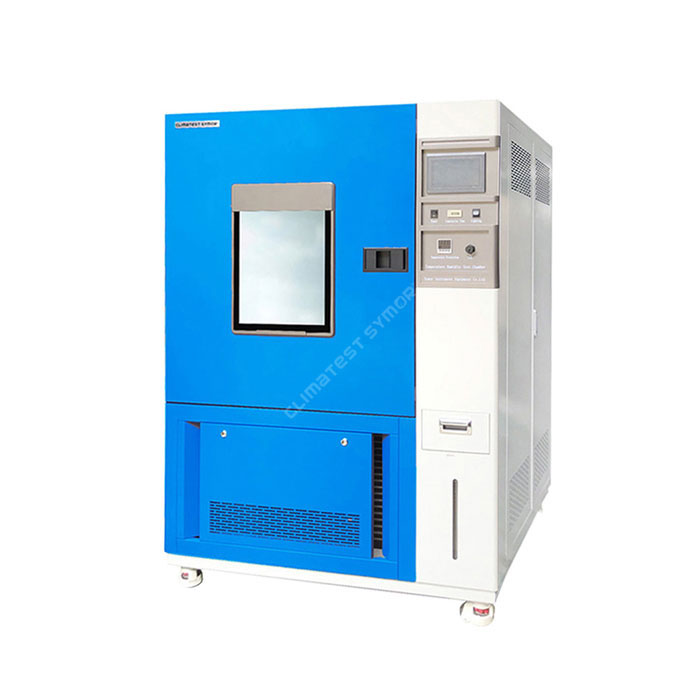

Model: TGDJS-250
Capacity: 250L
Shelf: 2 pcs
Color: Blue
Interior dimension: 600×500×800 mm
Exterior dimension: 1120×1100×2010 mm

Send Inquiry

Product Description

A climate chamber price depends on the specific requirements of your application, and it's essential to carefully evaluate your needs and budget to determine the right chamber for your needs.
Climate chamber simulates and controls specific temperature and humidity conditions for various purposes, such as testing the performance and reliability of products in extreme environments. The temperature and humidity are controlled through various heating, cooling, and humidification/dehumidification mechanisms, such as heaters, compressors, fans, and waterway. The chamber's sensors and controllers constantly monitor and adjust the temperature and humidity levels to maintain the desired conditions. You can click below video to learn details:



Specification

Model

TGDJS-50

TGDJS-100

TGDJS-150

TGDJS-250

TGDJS-500

TGDJS-800

TGDJS-1000

Interior Dimension

350×320×450

500×400×500

500×500×600

600×500×810

800×700×900

1000×800×1000

1000×1000×1000

Exterior Dimension

950×950×1400

1050×1030×1750

1050×1100×1850

1120×1100×2010

1350×1300×2200

1560×1410×2240

1560×1610×2240

Temperature Range

Model A :-20°C~+150°C Model B: -40°C~+150°C Model C: -70°C~+150°C

Temperature Fluctuation: ≤±0.5°C; Temperature Uniformity: ≤2°C

Heating Rate

2.0~3.0°C/min

Cooling Rate

0.7~1.0°C/min

Humidity Range

20% ~ 98% R.H (5%RH,10%RH also available)

Humidity Bias

+2/-3% R.H

Interior Material

Anti-corrosion SUS#304 brushed stainless steel

Exterior Material

Cold rolled steel plate with electrostatic spraying

Insulation

Superfine fiberglass wool / polyurethane foam

Controller

7”Programmable LCD touch screen controller

Circulation System

High temperature resistant motors, single cycle, long axis and stainless steel multi-leaf type centrifuge fan

Humidification

Shallow groove humidification, steam humidification mode, automatic water supply with water shortage alarm

Dehumidification

Refrigeration dehumidification mode

Heating System

NiCr heater, independent system

Refrigeration

France "TECUMSEH" Hermetic Compressors, Unit cooling mode/Dual cooling mode (air-cooling)

Protection Devices

Leakage and outage protection, compressor over-pressure, overheat, over-current protection, overload fusing protection,audio signal alarm, water shortage alarm

Power Supply

220V·50HZ/60HZ,380V 50HZ/60HZ


Safety protection:

·Independent temperature limiter: An independent shutdown and alarm for thermal protection purpose during the test.

·Refrigeration system: Over-heat, over-current and over-pressure protection of compressor.

·Test chamber: Over-temperature protection, overheat of fan and motor, phase failure/reverse, timing of the entire equipment.

·Others: Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage protection, and overload protection.


Temperature and humidity curve:


What is the function of a climate chamber for temperature and humidity testing?

A climate chamber is a type of testing equipment that can simulate different temperature and humidity conditions for the purpose of evaluating how materials, components, or products perform in these environments. It is typically a sealed enclosure that can be adjusted to control the temperature, humidity, and airflow.
Climate chambers are used in various industries, such as electronics, automotive, pharmaceuticals, and food, to ensure that their products can withstand the conditions they will be exposed to during use and storage. Climate chambers can also help to identify potential issues or weaknesses in a product before it is released to the market, which can help to reduce costs and improve product quality.
Climate chambers come in a variety of sizes and configurations, from small bench-top units to large walk-in chambers. They can be used to conduct a wide range of tests, including temperature and humidity cycling, thermal shock testing, corrosion testing, salt spray testing, vibration testing, and altitude testing, among others.


What is the structure of the climate chamber for temperature and humidity testing?

The structure of a climate chamber depends on the manufacturer and model, but typically consists of the following main components:

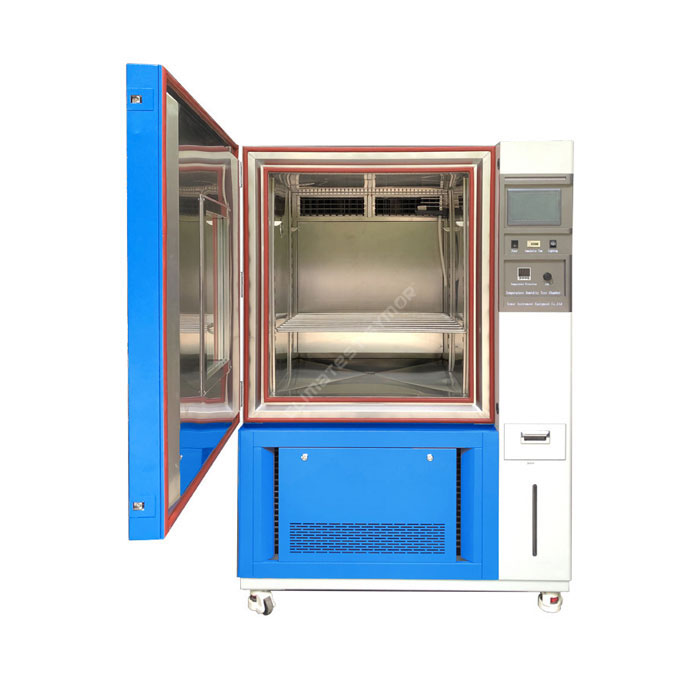

1. Working Chamber: This part is used to create a controlled environment for testing. The chamber is typically made of stainless steel SUS#304 that are durable enough to withstand the extreme temperature and humidity conditions inside.

2. Insulation: To maintain temperature and humidity levels, the chamber is typically insulated with materials such as fiberglass or polyurethane.

3. Heating and cooling system: This system adopts forced air convection to perform heating and cooling tests. To realize temperature humidity control, the test chamber should be able to carry out two functions: heating and cooling, uniform temperature also must be evenly distributed inside the working chamber, Climatest Symor® makes it possible to achieve a high degree of temperature uniformity in the whole testing area.


Climate chamber adopts mechanical cooling system and mechanical heating system to conduct testings on products:
Mechanical heating system consists of electric heating elements positioned near the ventilation system, so that the heated hot air is delivered into the testing zone from air inlet, then come out from air outlet, meanwhile, there are centrifugal fans located at the back of the air inlet, so as to blast the hot air to reach better uniformity.

Mechanical cooling system consists of a closed circuit system, with the following main components:

·Control valve

·Condensor

·Evaporator

·Compressor

The refrigeration system in a thermal test chamber is classified to be single stage and double stage, the single stage is adopted with temperature -40℃ and above, and double stage (also called cascade system) is with temperature below 40℃.


4.Humidity control system: The humidity control system is used to control the humidity inside the chamber. This system can include humidifying and dehumidifying systems.

5. Control panel: The control panel is used to operate the test chamber. It typically includes a display for temperature and humidity readings, as well as buttons or knobs for adjusting the temperature and humidity levels.

Programmable LCD touch screen controller:

·7 inch Japan programmable touch screen controller

·Set temperature point under fix value mode or programs mode

·Temperature set point and realtime temperature curve display
·100 groups program with 999 segment memory; each segment 99Hour59Min

·Test data can be downloaded as required through RS232 interface

6. Sample holders: Sample holders are used to securely hold the products or materials being tested inside the chamber. These can be shelves, trays, or other types of holders, depending on the size and type of the products being tested.

7. Door: The door of the test chamber is used to access the interior. The door should be sturdy, airtight, and able to withstand the temperature and humidity conditions inside the chamber.


These are the main components of a constant temperature and humidity test chamber. The exact design and structure of the chamber can vary depending on the manufacturer and model, but these components are typically present in most models.


What is the application of a climate chamber for temperature and humidity testing?

Climate test chambers are used to simulate various environmental conditions and test the performance and durability of products or materials under those conditions. Some common applications of environmental test chambers include:
1.Product testing: Climate test chambers are used to test the performance and reliability of products under various environmental conditions, such as temperature, humidity, and vibration. This helps manufacturers identify potential design flaws and improve product quality.
2.Material testing: Climate test chambers are used to test the properties of materials under different environmental conditions, such as thermal cycling, salt spraying corrosion, and UV exposure. This helps researchers understand the behavior of materials and develop new materials with improved performance.
3.Life science research: Climate test chambers are used in life science research to simulate specific environmental conditions for organisms, such as plants, animals, and cells. This helps researchers understand how organisms respond to different environmental factors and develop strategies to improve their survival.
4.Calibration: Climate test chambers are used to calibrate and test the electronic components, such as the accuracy of sensors and measuring instruments under different environmental conditions. This helps ensure the reliability and accuracy of measurement data.


As a climate chamber manufacturer, what is Climatest Symor® committed to do?
Climatest Symor® is a professional climate chamber manufacturer and supplier, the company is committed to producing high-quality testing equipments, which simulate a range of temperature and humidity conditions with a high degree of accuracy and reliability. Climatest Symor® aims to provide solutions that meet the specific needs of our customers, such as the ability to test large or small products, perform rapid temperature changes, or maintain precise humidity levels. We also focus on developing energy-efficient and environmentally friendly products, as well as providing excellent customer support and service to ensure that their customers get the most out of their testing equipment.


How to pack and ship a climate chamber for temperature and humidity testing?

The packaging and shipment of a climate chamber impacts its safety and performance. Proper packaging and shipment are important to prevent damage during transportation and ensure that the chamber arrives at its destination in good condition. Here are Climatest Symor® general guidelines for packaging and shipping a climate chamber:
1.Packaging materials: Use high-quality, shock-absorbing materials, such as foam or bubble wrap, to protect the chamber during transportation. You may also want to use a sturdy shipping crate to further protect the chamber.
2.Handling: The chamber is handled with care to prevent damage. It's important to use the right equipment, such as a forklift or pallet jack, to lift and move the chamber.
3.Labeling: Clearly label the chamber with "Fragile" and "This Side Up" stickers to ensure that it is handled with care during transportation.
4.Shipping method: The chamber is shipped by sea, Climatest Symor® team makes vessel booking in advance according to the size, weight, and destination of the chamber, the local transport is normally a truck.
It's important to work with a reliable and experienced shipping company to ensure that the climate chamber is packaged and shipped properly. Proper packaging and shipment can help ensure that the chamber arrives at its destination in good condition and is ready for use.


How to install a climate chamber for temperature and humidity testing?

Installing a climatel chamber requires a few steps to ensure proper operation and safety.
Here is a general outline of the process:
•Choose a location: Select a room that can accommodate the size of the climate chamber and that has access to electrical power and ventilation.
•Prepare the floor: Make sure the floor can support the weight of the climate chamber and is level to prevent tipping.
• Assemble the chamber: Follow the manufacturer's instructions to assemble the climate chamber, including connecting any electrical components.
• Install the power supply: Connect the climate chamber to a power source that can handle the electrical requirements of the chamber. Make sure to use a properly rated circuit breaker and power cord.
•Connect the ventilation: Make sure the climate chamber has proper ventilation to remove excess heat and moisture.
•Install temperature and humidity controls: Connect the temperature and humidity controls to the climate chamber and calibrate them according to the manufacturer's instructions.
•Test the system: Turn on the climate chamber and check that it is functioning properly. Monitor the temperature and humidity levels and make any necessary adjustments.
It is important to follow the manufacturer's instructions and all applicable safety guidelines when installing a climate chamber.
A: ≥60cm B: ≥60cm C: ≥120cm
Attention: inclination should not exceed 15°C
