Climatest Symor® is China Dry Cabinet for PCB factory, the company is committed to supply high-level, competitively priced dry cabinets for PCB, with the most advanced dehumidifying technology, Climatest Symor® has sold dry cabinets for PCB to the well-known electronic/semiconductor manufacturers in EU, USA, Southeast Asia countries for more than 10 years.

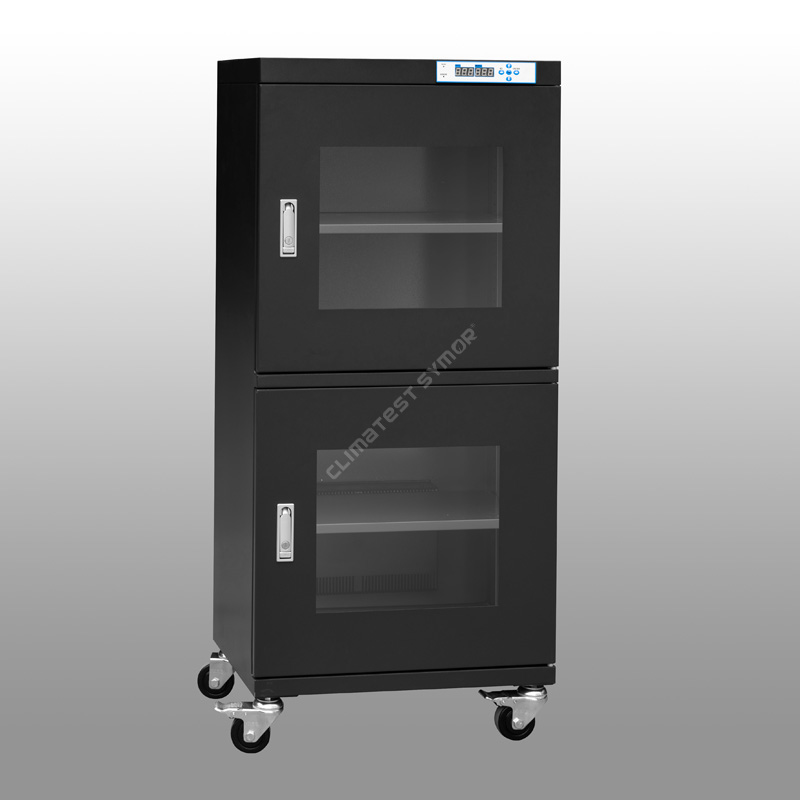

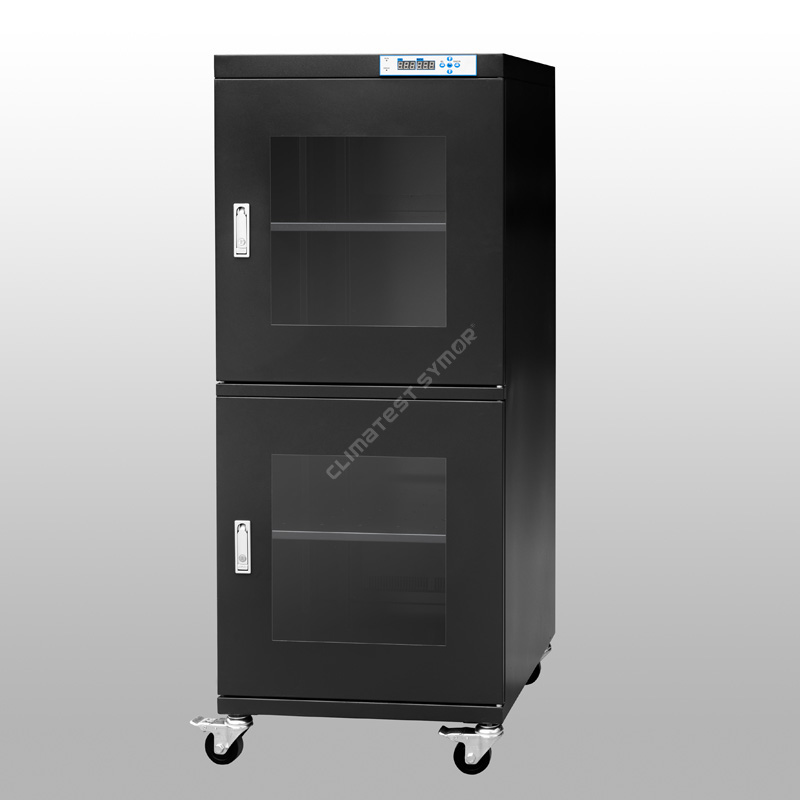

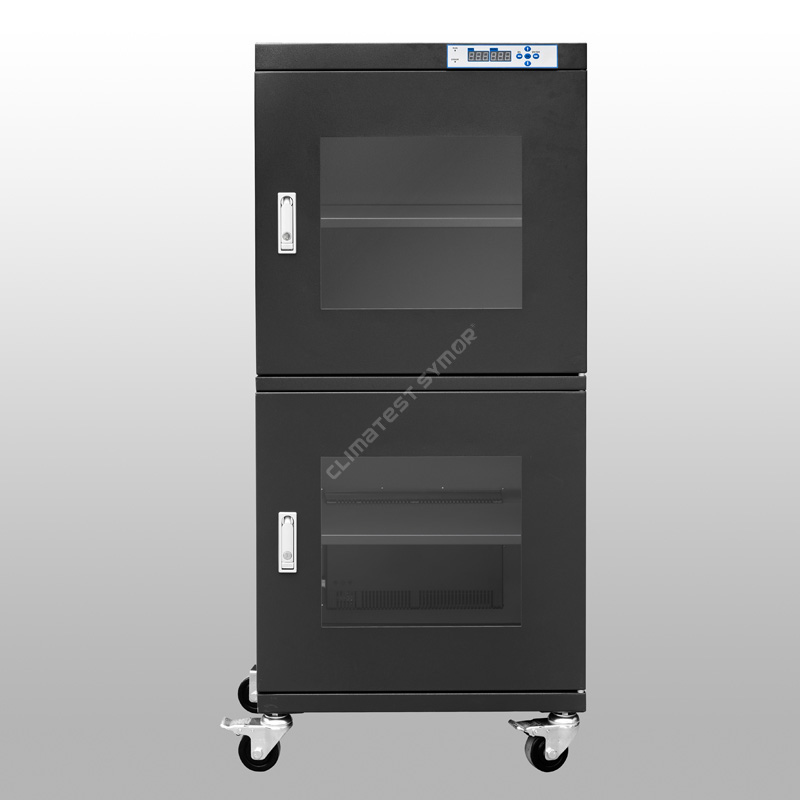

Model: TDU240F
Capacity: 240L
Humidity: <5%RH Automatic
Recovery time: Max. 30 min after open door 30 seconds then closed. (Ambient 25℃ 60%RH)
Shelves: 3pcs
Color: Dark Blue, ESD safe
Interior dimension: W596*D372*H1148 MM
Exterior dimension: W598*D400*H1310 MM
Description
Climatest Symor® Dry Cabinet for PCB provides long-term low humidity storage for IC packages, it is equipped with dehumidifying system, the moisture sensitive components properly stored in this dry cabinets for PCB have an extended floor life, the popcorn and micro-cracking phenomenons during reflow process are no longer a problem, the dry cabinets meets IPC/JEDEC J-STD 033 standard.
Dry Cabinet for PCB Specification
Mode# with F: ESD function, Dark Blue color.
Mode# without F: No ESD function, off white color
Model |
Capacity |
Interior Dimension (W×D×H,mm) |
Exterior Dimension (W×D×H,mm) |
Average Power (W) |
Gross Weight (KG) |
Max. Load/shelf (KG) |
TDU98 |
98L |
446*372*598 |
448*400*688 |
8 |
31 |
50 |
TDU98F |
98L |
446*372*598 |
448*400*688 |
8 |
31 |
50 |
TDU160 |
160L |
446*422*848 |
448*450*1010 |
10 |
43 |
50 |
TDU160F |
160L |
446*422*848 |
448*450*1010 |
10 |
43 |
50 |
TDU240 |
240L |
596*372*1148 |
598*400*1310 |
10 |
57 |
50 |
TDU240F |
240L |
596*372*1148 |
598*400*1310 |
10 |
57 |
50 |
TDU320 |
320L |
898*422*848 |
900*450*1010 |
10 |
70 |
80 |
TDU320F |
320L |
898*422*848 |
900*450*1010 |
10 |
70 |
80 |
TDU435 |
435L |
898*572*848 |
900*600*1010 |
10 |
82 |
80 |
TDU435F |
435L |
898*572*848 |
900*600*1010 |
10 |
82 |
80 |
TDU540 |
540L |
596*682*1298 |
598*710*1465 |
10 |
95 |
80 |
TDU540F |
540L |
596*682*1298 |
598*710*1465 |
10 |
95 |
80 |
TDU718 |
718L |
596*682*1723 |
598*710*1910 |
15 |
105 |
80 |
TDU718F |
718L |
596*682*1723 |
598*710*1910 |
15 |
105 |
80 |
TDU870 |
870L |
898*572*1698 |
900*600*1890 |
15 |
130 |
100 |
TDU870F |
870L |
898*572*1698 |
900*600*1890 |
15 |
130 |
100 |
TDU1436-4 |
1436L |
1198*682*1723 |
1200*710*1910 |
25 |
189 |
100 |
TDU1436F-4 |
1436L |
1198*682*1723 |
1200*710*1910 |
25 |
189 |
100 |
TDU1436-6 |
1436L |
1198*682*1723 |
1200*710*1910 |
25 |
189 |
100 |
TDU1436F-6 |
1436L |
1198*682*1723 |
1200*710*1910 |
25 |
189 |
100 |
Dry Cabinet for PCB Feature
·Adopts Switzerland original imported humidity & temperature sensor.
-This ensures high accuracy in use, this dry cabinets for PCB have memory function, no need to re-set after power failure.
·Made by 1.2mm thickness galvanized steel, with USA DuPont ESD painting.
-Reinforced structure design, excellent load-bearing, surface treatment with 18 painting processes, the static resistance value meets 106 -108Ω, also with strong corrosion resistance.
·3.2mm high intensity tempered glass window for better observation.
- Flat press zinc alloy lock, with perfect air tightness and anti-theft function, this dry cabinets for PCB sealing performance is excellent.
·With memory function, no need to re-set after power failure.
-The dry cabinets for PCB can automatically memorize the last setting value after power off, no need set again.
·Powerful dry unit with +15 years projected lifespan.
- The dry cabinets for PCB adopt 4A molecular sieve dry unit, the most advanced technique, it can be regenerated automatically, no need replacement.
·Universal castors installed at bottom, ESD safe.
- Reinforced PU castors are installed at the bottom of dry cabinets for PCB, front two with brakes for easy move and stop.
What is Climatest Symor® dry cabinets for PCB, auto dry cabinets?
Climatest Symor® dry cabinets for PCB, also called auto dry cabinets, are air-tight automatic dehumidifying dry boxes that protect moisture sensitive items from humidity-related damages, it maintains a <5%RH low humidity internal environment, that can effectively eliminate the risks of failures result from improper storage during assembly process.
Application of dry cabinets for PCB
Dry cabinets for electronic components are indispensable in electronic manufacturing industry, it is the optimal storage solution for IC packages, PCB boards, LED, SMD, SMT, and also tape and reels, printed wiring boards(PWB), polymide film, feeders, other ideal application for capacitor ceramic parts, connectors, switches, welding bar, the auto dry cabinets conform to IPC/JEDEC J-STD 033 standard.
How do dry cabinets for PCB influence the SMT production?
MSL components, like IC, BGA,PCB, are very sensitive to humidity, these components have certain requirements for the storage environment, unlike the civilian moisture-proof dry boxes, the dry cabinets for PCB should reach a very low humidity point, the dehumidifying and recovering speed should also be very fast, moreover, the whole cabinets should be ESD safe, the dry cabinets used in the cleanroom must be stainless steel material to meet strict hygiene requirements.
During reflow heating process, trace moisture vapor penetrate into the IC packages, the absorbed moisture expand quickly inside, this result in invisible damages, like wiring failure, popcorn and micro-cracking, even cracking to surface, these defects are not easy to be seen in the early stage, however, these invisible, potential problems enter into the market, then faculty products return and complains follow.
Normal storage |
Reflow process |
||
|
|
|
|
Moisture in the ambient penetrates into the packages. |
During heating, the water steam pressure increases, that separates the die and resin. |
The water steam continues to expand under heating, blowing up the packages. |
The water steam breaks the packages, which causes micro-cracking. |
IPC/JEDEC J-STD-033 standard specifies“Standard for Handling, Packing, Shipping and Use of Moisture/Reflow Sensitive Surface Mount Devices.”, it require low humidity storage for moisture sensitive components.
<5%RH Series dehumidifying speed:
Open door 30 seconds and then closed, the humidity will recover to <5%RH within 30 minutes,see below curve: (Ambient 25 degree C, humidity 60%RH)
WHAT ARE THE COMMON METHODS TO STORE ELECTRONIC COMPONENTS?
1.Moisture barrier bags
❊Method: The moisture sensitive components are packed in sealed moisture barrier bags, with desiccants and humidity indicator card (HIC) inside, users identify the ambient humidity in the sealed packages by checking the color change of the dots on the car.
❊Disadvantage: Moisture barrier bags + humidity indicator cars + desiccants + manual work = consumables, leakage risk, high cost.
2.Nitrogen cabinets
❊Method: The moisture sensitive components are stored in nitrogen purge cabinets or compressed air to meet low humidity storage
❊Disadvantage: Nitrogen filling = continuous N2 consumption, high co
3.Electronic dry cabinets
❊Method: The moisture sensitive components are placed in an electronic dry cabinet, just plug in, the machine will automatically work, and reach very low humidity.
❊ Advantages: No consumables, no manual work, no nitrogen consumption, environmental, only a little bit of electricity needed.
We provide dry cabinets for PCB solutions to below industries:
Electronic production
Semiconductor
Pharmaceutical
Laboratory
Aviation
Military
Advantages of dry cabinets for PCB
For more details about dry cabinets for PCB, pls visit our website www.climatestsymor.com or directly send emails to sales@climatestsymor.com, we will get you back at quickest time, welcome for possible collaboration.
