Industrial high temperature drying ovens are manufactured in 4 standard chamber sizes with maximum operating temperatures of 400°C , 500°C and 600°C, these ovens are suitable for drying, curing, hardening, heat treatment, aging and components testing. There are variety of customized options at competitive prices in China.
Model: TBPG-9050A
Capacity: 50L
Interior Dimension: 350*350*400 mm
Exterior dimension: 695*635*635 mm
Description
Industrial high temperature drying ovens adopt advanced heating technology and airflow system, this ensures uniform heat dissipation of the whole oven chamber. The drying/baking ovens feature user-friendly digital control interfaces with programmable temperature cycles settings. This allows users to set the customized heating cycles according to the specific requirements of their processes.
Specification
| Model | TBPW-9030A | TBPW-9050A | TBPW-9100A | TBPW-9200A |
|
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 |
|
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 |
| Temperature Range | 100°C ~ 500°C | |||
| Temperature Fluctuation | ± 1.0°C | |||
| Temperature Resolution | 0.1°C | |||
| Temperature Uniformity | ± 1.5% | |||
| Shelves | 2 PCS | |||
| Timing | 0~ 9999 min | |||
| Power Supply | AC380V 400V 415V 480V 50HZ/60HZ | |||
| Ambient Temperature | +5°C~ 40°C | |||
Feature
►High temperature up to 400°C, 500°C, 600°C
►PID microprocessor based temperature controller
►Over temperature protection controller
►Uniform temperature distribution
►Optimized insulation minimizes heat loss
►Sheathed heating element
►Emergency mushroom button
Option
►Programmable temperature controller
►Nitrogen purging system
►Over temperature buzzer alarm
►Three-color flashing light alarm
►Communication with RS485 interface

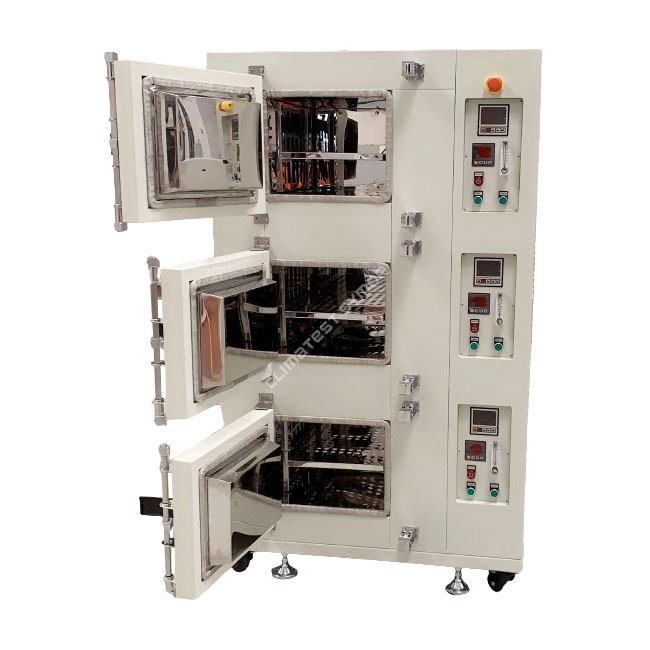

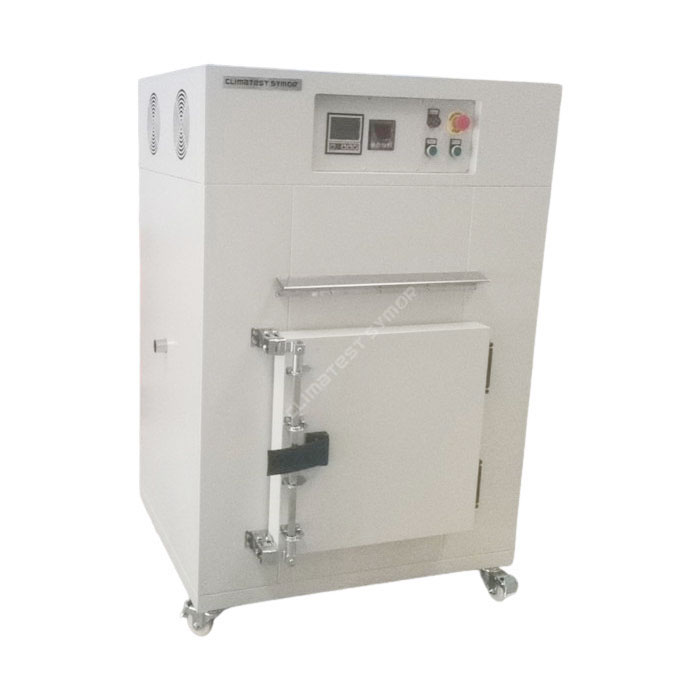

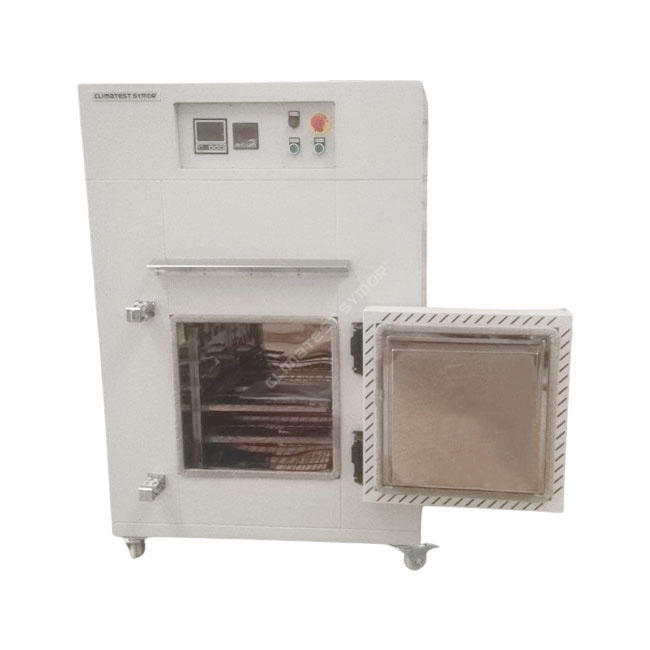

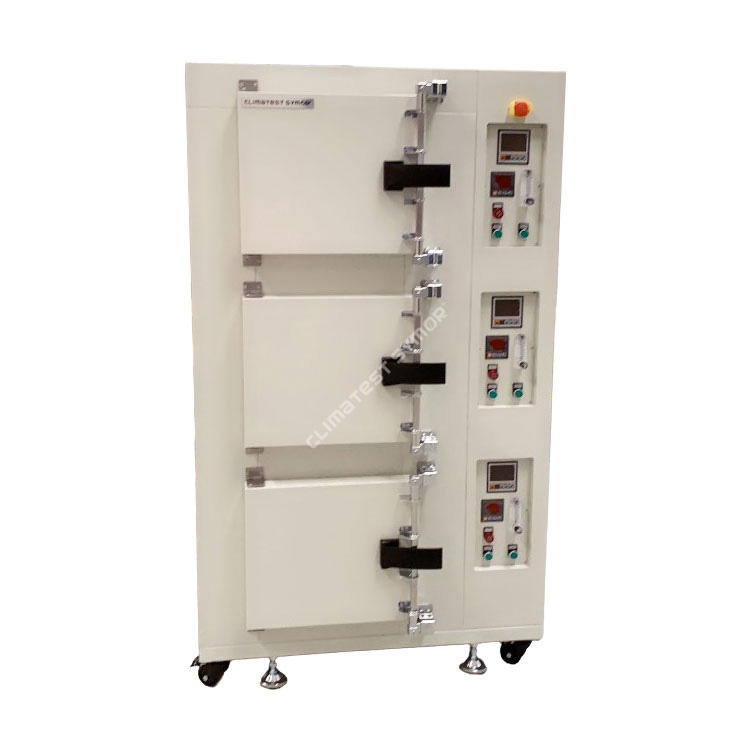

High temperature drying oven
Industrial high temperature drying ovens offer quick responding chambers capable of continuous operations of 500°C, the exterior is constructed from galvanized steel finished in an easy clean powder coated paint, each oven comes with a single hinged door and an explosion proof handle. The walls and doors are well insulated to reduce heat loss. The interior chamber/heating element/shelves are made of stainless steel 304, the adjustable air inlet and outlet circulation ports are provided.
Our standard controller is digital display, programmable controller is optional, it has auto-tuning and settable ramp rate function, this feature provides precise and stable control from the power-on moment.
For operation on 380VAC, 50/60HZ, 400V or 415V, 480V are also available.
Benefits
Improved Efficiency: High temperature drying ovens accelerate processing times for heat treatment, drying, curing, and other thermal processes. Their ability to reach and maintain high temperatures reduces processing time, thereby improving production efficiency and research workflows.
Quality Assurance: High temperature drying ovens ensure the quality and reliability of manufactured products, the ovens enable precise control over critical thermal processes. This quality assurance is essential in industries where material properties and product performance are paramount, such as aerospace, automotive, and electronics.
Cost Savings: By optimizing processing parameters and reducing cycle times, high temperature drying ovens contribute to cost savings in production processes. Improved efficiency, enhanced material properties, and reduced energy consumption translate into lower manufacturing costs and higher profitability.
Application
Climatest Symor® is dedicated to becoming an excellent manufacturer of industrial high temperature drying ovens in China, our ovens find application in various industries. Here are some common applications:
Drying and Curing
Industries involved in coatings, paints, adhesives, and other surface treatments require high temperature drying ovens for drying and curing processes. These ovens accelerate the evaporation of solvents and promote cross-linking reactions, ensuring proper adhesion and finish of the applied coatings.
Chemical Synthesis
In chemical industries and research laboratories, high temperature drying ovens are utilized for synthesizing chemical compounds, catalyst activation, and thermal decomposition reactions. These ovens provide the necessary conditions for driving chemical reactions at elevated temperatures.
Laboratory Research
High temperature drying ovens are indispensable instruments in scientific research laboratories. They are used for various experiments and analysis requiring controlled high temperatures, such as studying material properties, conducting thermal decomposition studies, and synthesizing new materials.
500°C Industrial high-temperature drying ovens span across various industries, including metallurgy, ceramics, polymers, chemicals, electronics, and research, where precise temperature control is essential for material processing, synthesis, and experimentation.
