Climatest Symor® is China industrial high temperature lab oven manufacturer, we are committed to designing, manufacturing and serving industrial ovens at competitive prices, the ovens are available in 4 different standard models, and customizable for your products application, there are variety of customized options for your selection at competitive prices.
Model: TBPG-9100A
Capacity: 90L
Interior Dimension: 450*450*450 mm
Exterior dimension: 795*730*690 mm
Description
Industrial high temperature lab ovens adopt vertical or horizontal air circulation with affordable prices, it is recommended for a variety of manufacturing and laboratory applications, including drying, curing, annealing, and material testing. The lab ovens feature user-friendly digital control interfaces with programmable temperature cycles settings. This allows users to set the customized heating cycles according to the specific requirements of their processes.
Specification
Model | TBPW-9030A | TBPW-9050A | TBPW-9100A | TBPW-9200A |
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 |
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 |
Temperature Range | 100°C ~ 500°C | |||
Temperature Fluctuation | ± 1.0°C | |||
Temperature Resolution | 0.1°C | |||
Temperature Uniformity | ± 1.5% | |||
Shelves | 2 PCS | |||
Timing | 0~ 9999 min | |||
Power Supply | AC380V 400V 415V 480V 50HZ/60HZ | |||
Ambient Temperature | +5°C~ 40°C |
Feature
►High temperature up to 400°C, 500°C, 600°C
►PID microprocessor based temperature controller
►Over temperature protection monitor
►Optimized insulation minimizes heat loss
►Sheathed heating element
►Emergency mushroom button
Option
►Programmable temperature controller
►Nitrogen purging system
►Over temperature buzzer alarm
►Three-color flashing light alarm
►Communication with RS485 interface

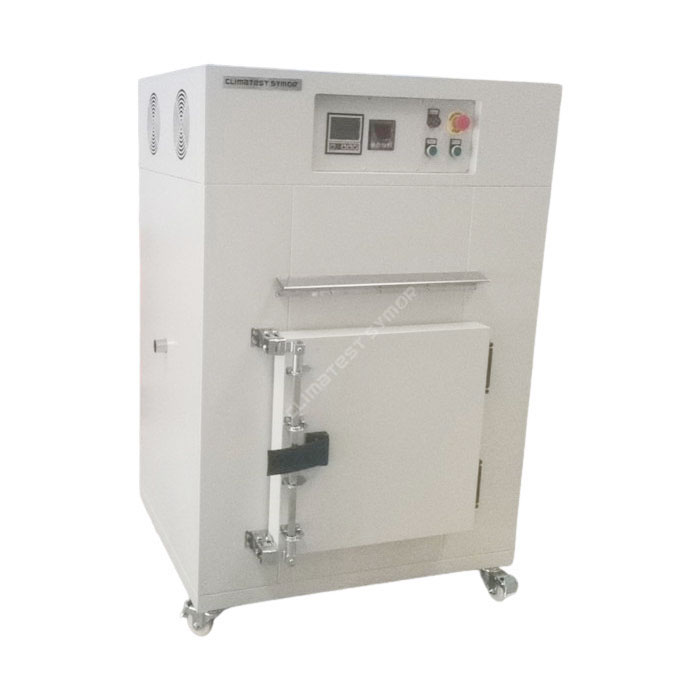

High temperature lab oven
Industrial high temperature lab ovens provide fast responsive 500°C continuous running chamber, the exterior is made of galvanized steel finished in an easy-to-clean powder coated paint, each with a single hinged door and a blast proof handle. The walls and doors are well insulated to reduce heat loss. The interior chamber/heating element/shelves are made of stainless steel 304, providing an adjustable air inlet and outlet circulation ports.
Our standard controller is a digital display, the programmable controller is optional, and it has auto-tuning and settable ramp rate functions, this feature provides precise and stable control from the power-on moment.
For operation on 380VAC, 50/60HZ, 400V or 415V, 480V are also available.
Benefits
Quality Assurance: High temperature lab ovens ensure the quality and reliability of manufactured products, the ovens enable precise control over critical thermal processes. This quality assurance is essential in industries where material properties and product performance are paramount, such as aerospace, automotive, and electronics.
Improved Efficiency: High temperature lab ovens accelerate processing times for heat treatment, drying, curing, and other thermal processes. Their ability to reach and maintain high temperatures reduces processing time, thereby improving production efficiency and research workflows.
Cost Savings: By optimizing processing parameters and reducing cycle times, high temperature lab ovens contribute to cost savings in production processes. Improved efficiency, enhanced material properties, and reduced energy consumption translate into lower manufacturing costs and higher profitability.
Application
Climatest Symor® makes efforts to become an excellent manufacturer of industrial high temperature lab ovens in China, there are a variety of applications in the following industries.
Drying and Curing
Industries involved in coatings, paints, adhesives, and other surface treatments require high temperature laboratory ovens for the drying and curing processes. These ovens accelerate evaporation of solvents, facilitate cross-linking reactions, and ensure proper adhesion and coating.
Chemical Synthesis
In chemical industries and research laboratories, high temperature laboratory ovens are used to synthesize chemical compounds, catalyst activation, and thermal decomposition reactions. These ovens provide the necessary conditions to drive the chemical reactions at high temperatures.
Laboratory Research
High temperature laboratory ovens are indispensable instruments in scientific research laboratories. They are used in various experiments and analysis required to control high temperatures, such as studying material properties, conducting thermal decomposition studies, and synthesizing new materials.
500°C Industrial high temperature lab ovens span various industries, including metallurgy, ceramics, polymers, chemicals, electronics, and research, in which precise temperature control is essential for material processing, synthesis, and experimentation.
