Industrial heating ovens are equipped with precise temperature control systems, allowing users to set and maintain specific temperature levels inside the oven, temperature ranges vary from ambient temperature to 200°C or higher. Industrial heating ovens typically utilize forced air convection systems to ensure uniform heat distribution throughout the chamber. This helps to prevent hot spots and ensures consistent baking or heating.

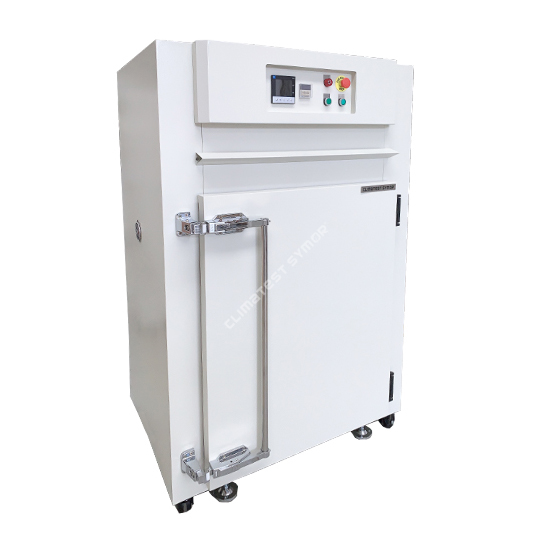

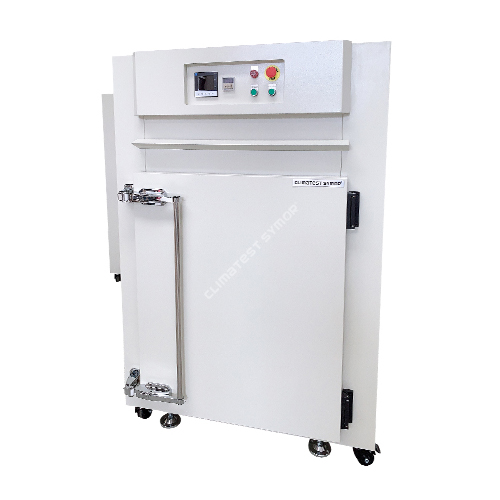

Model: TBPG-9200A
Capacity: 200L
Interior Dimension: 600*600*600 mm
Exterior dimension: 950*885*840 mm
Description
Industrial heating ovens feature digital displays that show real-time temperature readings, and allow users to monitor the drying process easily, there are typically adjustable shelves or racks to place samples & materials, drying ovens are insulated to minimize heat loss and maintain temperature stability. This helps to conserve energy and ensure efficient operation.
Specification
| Model | TBPB-9030A | TBPB-9050A | TBPB-9100A | TBPB-9200A | |
|
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 | |
|
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 | |
| Temperature Range | 50°C ~ 200°C | ||||
| Temperature Fluctuation | ± 1.0°C | ||||
| Temperature Resolution | 0.1°C | ||||
| Temperature Uniformity | ± 1.5% | ||||
| Shelves | 2 PCS | ||||
| Timing | 0~ 9999 min | ||||
| Power Supply | AC220V 230V 240V 50HZ/60HZ | AC380V 400V 415V 480V 50HZ/60HZ | |||
| Ambient Temperature | +5°C~ 40°C | ||||
Features:
• Precise temperature control system
• Uniform temperature distribution
• PID microcomputer digital display controller
• Forced air convection
General operation steps:
Here are operation procedures in an industrial heating ovens :
• Place the materials onto shelves, and keep some distance between them
• Preheat the oven to the required temperature.
• Set temperature and baking time on the digital display.
• Monitor the temperature during the baking process.
• Once the baking time is complete, the oven stops working automatically, please only open the door when the interior temperature cools down to the ambient temperature.
It's important to note that some materials are sensitive to high temperature, so it's essential to follow the recommended baking temperature and time. Additionally, baked materials should be stored in a dry environment to prevent moisture from re-entering the drying process.
Application
Industrial heating ovens are widely applied in electronic manufacturing industry, due to its ability to provide accurate temperature control, uniform heat distribution, and reliable performance. Here are common applications of these ovens;
Component Rework
In electronics manufacturing, Laboratory drying ovens are used for component rework processes where sensitive electronic components or assemblies need to be heated for removal or rework without risking damage.
Heat Treatment
Industrial heating ovens are used for heat treatment processes, such as annealing or stress relieving of materials that require gentle heating to achieve desired properties.
Curing Coatings
Industrial heating ovens are used for curing low-temperature coatings or finishes on various materials, including metals, plastics, or ceramics.
Polymerization
Industrial heating ovens are used for polymerization processes where polymer coatings, adhesives, or resins are cured or hardened at low temperatures.
