Climatest Symor® provides low humidity storage cabinets for MSL components, the cutting-edge manufacturing process, together with the patented dehumidifying technology , helps us win numerous customers worldwide, Climatest Symor® delivers high-end low humidity storage cabinets with competitive price, each low humidity storage cabinet comes with two years warranty.

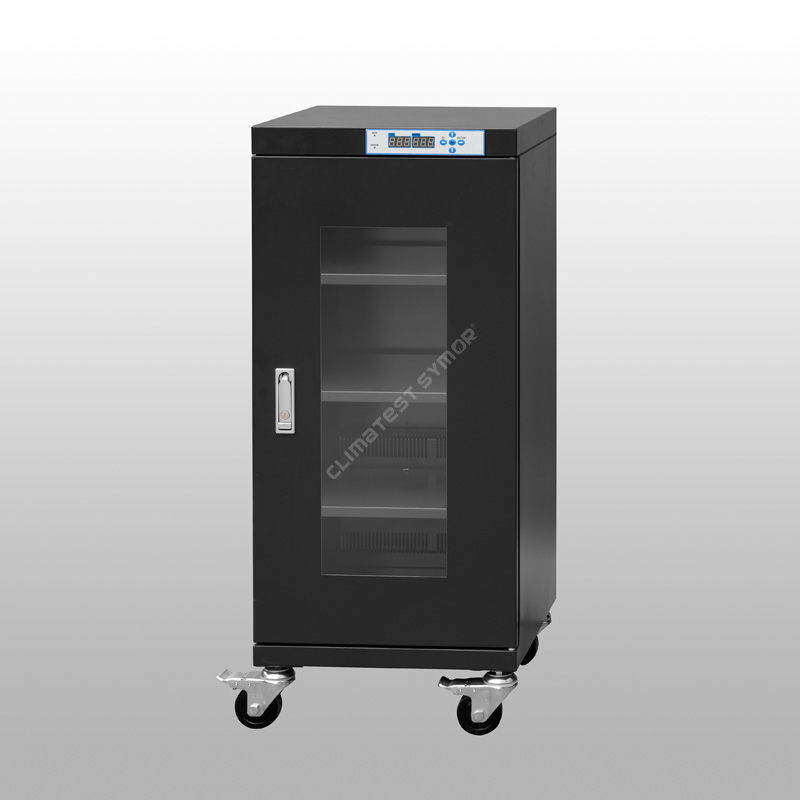

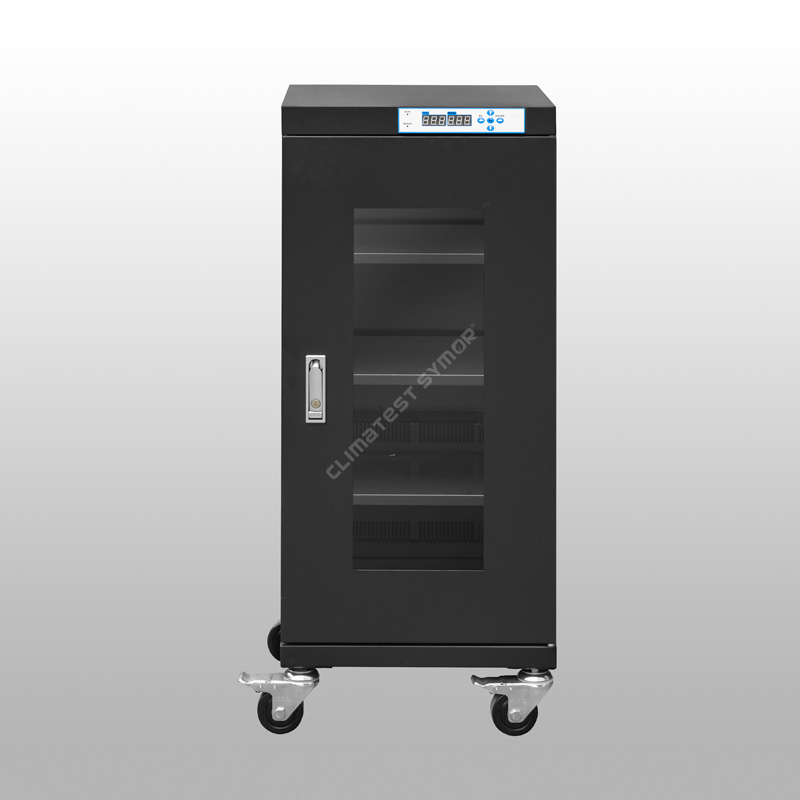

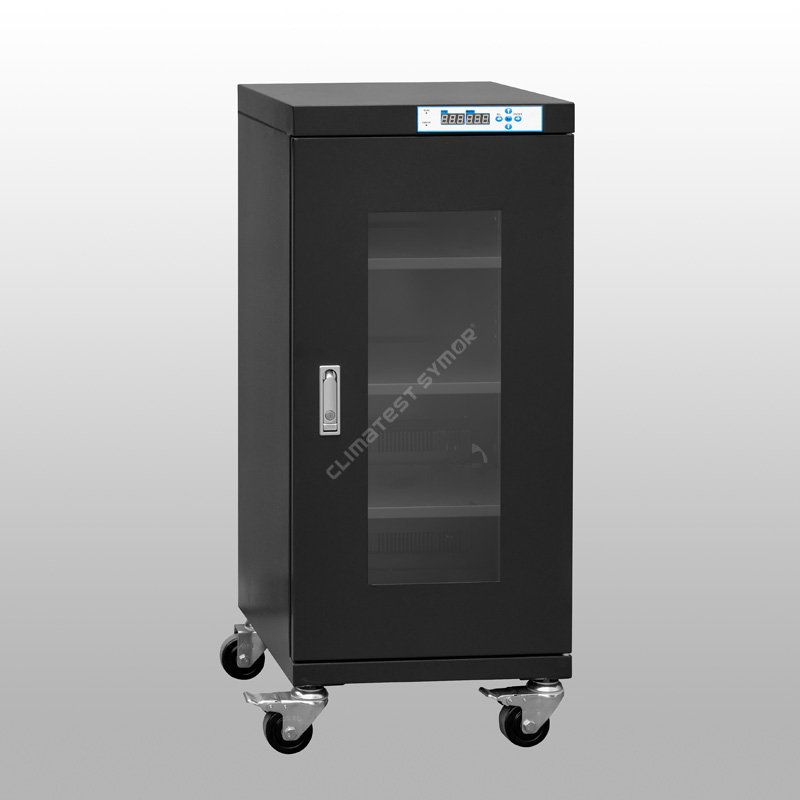

Model: TDC160F
Capacity: 160L
Humidity: <10%RH Automatic
Recovery time: Max. 30 min after open door 30 seconds then closed. (Ambient 25℃ 60%RH)
Shelves: 3pcs
Color: Dark Blue, ESD safe
Interior dimension: W446*D422*H848 MM
Exterior dimension: W448*D450*H1010 MM

Send Inquiry

Product Description

Description

Climatest Symor® low humidity storage cabinets protect your electronic components from cracking and non-effective welding in SMT production line, it provides a long-term <10%RH dehumidifying environment, that effectively extends the service life and floor life of the PCB board and IC chips, these low humidity storage cabinets follow IPC/JEDEC J-STD-033 standard.



Specification

Mode# with F: ESD function, Dark Blue color.
Mode# without F: No ESD function, off white color

Model

Capacity

Interior Dimension

(W×D×H,mm)

Exterior Dimension

(W×D×H,mm)

Average Power (W)

Gross Weight (KG)

Max. Load/shelf (KG)

TDC98

98L

446*372*598

448*400*688

8

31

50

TDC98F

98L

446*372*598

448*400*688

8

31

50

TDC160

160L

446*422*848

448*450*1010

8

43

50

TDC160F

160L

446*422*848

448*450*1010

8

43

50

TDC240

240L

596*372*1148

598*400*1310

8

57

50

TDC240F

240L

596*372*1148

598*400*1310

8

57

50

TDC320

320L

898*422*848

900*450*1010

8

70

80

TDC320F

320L

898*422*848

900*450*1010

8

70

80

TDC435

435L

898*572*848

900*600*1010

8

82

80

TDC435F

435L

898*572*848

900*600*1010

8

82

80

TDC540

540L

596*682*1298

598*710*1465

8

95

80

TDC540F

540L

596*682*1298

598*710*1465

8

95

80

TDC718

718L

596*682*1723

598*710*1910

8

105

80

TDC718F

718L

596*682*1723

598*710*1910

8

105

80

TDC870

870L

898*572*1698

900*600*1890

10

130

100

TDC870F

870L

898*572*1698

900*600*1890

10

130

100

TDC1436-4

1436L

1198*682*1723

1200*710*1910

20

189

100

TDC1436F-4

1436L

1198*682*1723

1200*710*1910

20

189

100

TDC1436-6

1436L

1198*682*1723

1200*710*1910

20

189

100

TDC1436F-6

1436L

1198*682*1723

1200*710*1910

20

189

100


Feature

·Adopts Switzerland original imported humidity & temperature sensor.

-This ensures high accuracy in use, the low humidity storage cabinets have memory function, no need to re-set after power failure.


·Made by 1.2mm thickness galvanized steel, with USA DuPont ESD painting.

-Reinforced structure design, excellent load-bearing, surface treatment with 18 painting processes, the static resistance value meets 106 -108Ω, also with strong corrosion resistance.


·3.2mm high intensity tempered glass window for better observation.

- Flat press zinc alloy lock, with perfect air tightness and anti-theft function, this low humidity storage cabinets sealing performance is excellent.


·With memory function, no need to re-set after power failure.

-The low humidity storage cabinets can automatically memorize the last setting value after power off, no need set again.


·Powerful dry unit with +15 years projected lifespan.

- The low humidity storage cabinets adopt 4A molecular sieve dry unit, the most advanced technique, it can be regenerated automatically, no need replacement.


·Universal castors installed at bottom, ESD safe.

- Reinforced PU castors are installed at the bottom of low humidity storage cabinets, front two with brakes for easy move and stop.



What is Climatest Symor® low humidity storage cabinets, electronic dry cabinets, humidity control storage cabinets?

Climatest Symor® low humidity storage cabinets, is an enclosure with electronic humidity control that automatically maintains a stable relative humidity (RH) value, the low humidity storage cabinets come in different sizes and shapes, it can keep <10%RH low humidity environment reliably, with accurate RH control, just connect to your power supply, and set RH value on the LED controller, it will automatically work.


How do low humidity storage cabinets effect the SMT production?

MSL components, like IC, BGA, PCB, are very sensitive to moisture, these components have strict requirements for the storage environment, unlike the civilian moisture-proof dry boxes, the low humidity storage cabinets can reach a very low humidity value, the dehumidifying and recovering speed is super fast, the whole cabinets are ESD safe.
During reflow process, trace moisture penetrate into the IC packages, the moisture pressure rises due to heating, the absorbed moisture expand quickly inside, this result in invisible damages, like wiring failure, popcorn and micro-cracking, even cracking to the surface, these defects are not easy to be seen in the early stage, however, these invisible, potential problems enter into the market, then faculty products return and complains follow.

Normal storage

 Reflow process

Moisture in the ambient penetrates into the packages.

During heating, the water steam pressure increases, that separates the die and resin.

The water steam continues to expand under heating, blowing up the packages.

The water steam breaks the packages, which causes micro-cracking.

low humidity storage cabinetscan maintain <10%RH, that effectively eliminate the risks of failures result from improper storage during assembly process. IPC/JEDEC J-STD-033 standard specifies“Standard for Handling, Packing, Shipping and Use of Moisture/Reflow Sensitive Surface Mount Devices.”, it require low humidity storage for moisture sensitive components.


Why do you need a low humidity storage cabinets to store SMD?

MSD devices are generally integrated circuits, composed of different components, these components are assembled through paste, this inevitably causes gaps among components, the gaps are the main factor of MSD dampness, moisture will penetrate, and gradually into the SMD, when the penetration reaches a certain extent, SMD get damp and failed.
MSD low humidity storage , aims to control the SMD workshop life, low humidity storage cabinets provide an effective storage solution, the low humidity storage cabinets performance determines the SMD storage effect, a professional low humidity storage cabinets should achieve low humidity, antistatic and fast dehumidifying functions.
SMD level determines the required humidity level. In the current SMD level, the commonly used storage humidity is 20%, 10% and 5%RH.
Climatest Symor® low humidity storage cabinets adopt Switzerland imported temp. & RH sensor, the error is +/-2%RH, with high precision and high stability, humidity is adjustable, air-tightness is excellent.


Application of low humidity storage cabinets

low humidity storage cabinets are essential in electronic/semiconductor manufacturing industry, it is the OPTIMAL storage solution for:
※ PCB assembly, IC chips, LED, SMD, SMT, tape & reels, printed wiring boards(PWB), polymide film, feeders.
※ Capacitors, ceramic parts, connectors, switches, welding bar.
※ MSL components that have been partially assembled.
※ Moisture-absorbing materials, such as epoxy, resins, adhesives.

Moreover, cleanrooms have very strict hygiene requirements, the standard models don’t match, Climatest Symor® also supplies stainless steel (SS) dry cabinets and stainless steel (SS) nitrogen cabinets, both are customized according to customers’ specific demands.


<10%RH Series dehumidifying speed:

Open door 30 seconds and then closed, the humidity will recover to <10%RH within 30 minutes,see below curve: (Ambient 25 degree C, humidity 60%RH)


WHAT ARE THE COMMON METHODS TO STORE ELECTRONIC COMPONENTS?

1.Moisture barrier bags
❊Method: The moisture sensitive components are packed in sealed moisture barrier bags, with desiccants and humidity indicator car (HIC) inside, users identify the ambient humidity in the sealed packages by checking the color change of the dots on the car.
❊Disadvantage: Moisture barrier bags + humidity indicator cars + desiccants + manual work = consumables, leakage risk, high cost.

2.Nitrogen cabinets
❊Method: The moisture sensitive components are stored in nitrogen purge cabinets or compressed air to meet low humidity storage.
❊Disadvantage: Nitrogen filling = continuous N2 consumption, high cost.

3.Low humidity storage cabinets
❊Method: The moisture sensitive components are placed in a low humidity storage cabinet, just plug in, the machine will automatically work, and reach very low humidity.
❊ Advantages: No consumables, no manual work, no nitrogen consumption, environmental, only a little bit of electricity needed.
From above comparison, low humidity storage cabinets bring you higher efficiency and lower cost, it is the most cost-effective option in the long run.


We provide low humidity storage cabinets solutions to below industries:

  • Electronic production

  • Semiconductor

  • Pharmaceutical

  • Laboratory

  • Aviation

  • Military


Advantages of low humidity storage cabinets


What is the difference between low humidity storage cabinets and nitrogen cabinets?

1.Working principle
Low humidity storage cabinets use physical humidity absorbing, the core part is dry unit, the dry unit automatically adjusts the humidity absorbing and exhausting circulation processes, there are different RH ranges for your selection, such as 20-60%RH/10-20%RH/<10%RH/<5%RH/<3%RH, it depends on your specific demands.
Nitrogen cabinets use N2 gas purge, the N2 gas filled in push the interior air outside, then the RH lower to the setting value, there is a N2 flow-meter, magnetic valve and N2 module equipped on the nitrogen cabinet for control purpose, the humidity is 1-60%RH adjustable, but it needs continuous N2 supply, the cost is high.

2.Dehumidifying speed
The nitrogen cabinets dehumidifying speed are faster than the low humidity storage cabinets, when the N2 rush into the cabinet, the interior RH can reach 1%RH within several minutes, however, the electronic dry cabinet have to experience RH absorbing and exhausting processes, it is slower, normally within 10-30 minutes, depending on specific RH range.

3.Application
If the products are just humidity sensitive, low humidity storage cabinets are the best choice, if the products are both humidity sensitive and oxygen sensitive, like copper, crystal, silver, then N2 cabinet is better.


For more details about low humidity storage cabinets, pls visit our website www.climatestsymor.com or directly send emails to sales@climatestsymor.com, we will get you back at quickest time, welcome for possible collaboration.
