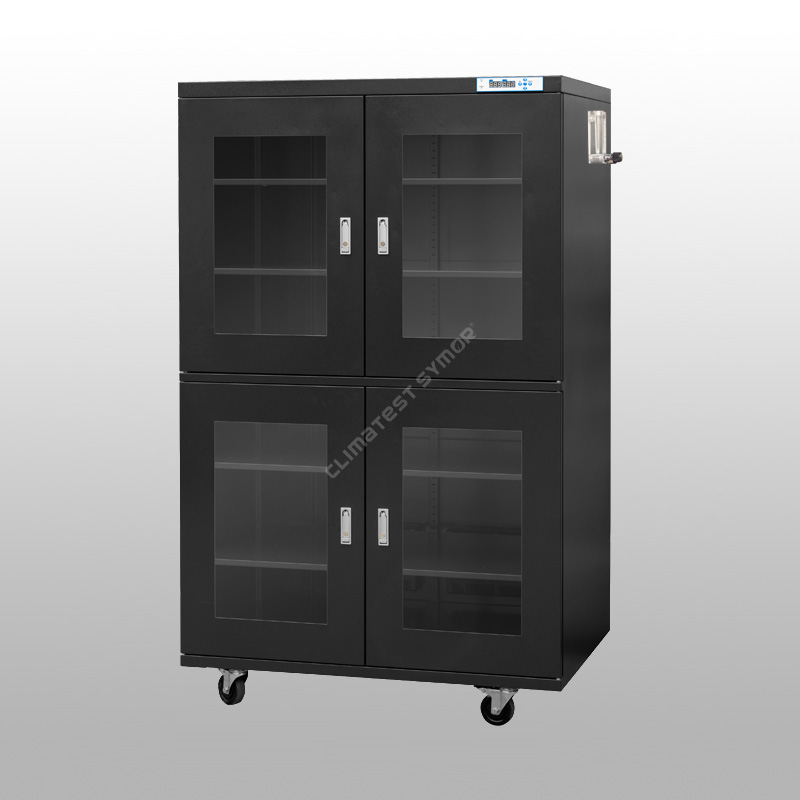

Nitrogen Dry Box Storage

Nitrogen dry box storage provides low humidity storage environment for moisture sensitive electronic/semiconductor components, such as IC packages, PCB, SMT, silicon wafers, the nitrogen dry box storage is with automatic humidity control, the humidity level can be down to 1%RH through filling nitrogen gas.

Model: TDN1436F-4
Capacity: 1436L
Humidity: 1%-60%RH adjustable
Recovery time: Max. 15 min after open door 30 seconds then closed. (Ambient 25℃ 60%RH)
Shelves: 5pcs, height adjustable
Color: Dark blue, ESD safe
Interior dimension: W1198*D682*H1723 MM
Exterior dimension: W1200*D710*H1910 MM

Send Inquiry

Product Description

Description

Climatest Symor® nitrogen dry box storage provide a good-quality and firm structure to meet your low humidity dry storage requirements, the nitrogen dry box storage create an airtight nitrogen-filling compartment to safely hold the moisture and oxygen sensitive components.


Specification

Model

Capacity

Interior Dimension

(W×D×H,mm)

Exterior Dimension

(W×D×H,mm)

Average Power (W)

Gross Weight (KG)

Max. Load/shelf (KG)

TDN98

98L

446*372*598

448*400*688

8

31

50

TDN98F

98L

446*372*598

448*400*688

8

31

50

TDN160

160L

446*422*848

448*450*1010

10

43

50

TDN160F

160L

446*422*848

448*450*1010

10

43

50

TDN240

240L

596*372*1148

598*400*1310

10

57

50

TDN240F

240L

596*372*1148

598*400*1310

10

57

50

TDN320

320L

898*422*848

900*450*1010

10

70

80

TDN320F

320L

898*422*848

900*450*1010

10

70

80

TDN435

435L

898*572*848

900*600*1010

10

82

80

TDN435F

435L

898*572*848

900*600*1010

10

82

80

TDN540

540L

596*682*1298

598*710*1465

10

95

80

TDN540F

540L

596*682*1298

598*710*1465

10

95

80

TDN718

718L

596*682*1723

598*710*1910

15

105

80

TDN718F

718L

596*682*1723

598*710*1910

15

105

80

TDN870

870L

898*572*1698

900*600*1890

15

130

100

TDN870F

870L

898*572*1698

900*600*1890

15

130

100

TDN1436-4

1436L

1198*682*1723

1200*710*1910

25

189

100

TDN1436F-4

1436L

1198*682*1723

1200*710*1910

25

189

100

TDN1436-6

1436L

1198*682*1723

1200*710*1910

25

189

100

TDN1436F-6

1436L

1198*682*1723

1200*710*1910

25

189

100


Product details

·Adopts Switzerland original imported humidity & temperature sensor.

-This ensures high precision in use, moreover, the nitrogen dry box storage have memory function, no need to re-set after power interrupted.


·Made by 1.2mm thickness galvanized steel, with USA DuPont ESD safe powder spraying.

-Solid structure, excellent load-bearing, surface treatment with 18 powder spraying processes, the static resistance value meets 106 -108Ω.


·Equipped with nitrogen-saving module

-Once the humidity inside nitrogen dry box storage reach the set value, the system automatically cut off the nitrogen supply,and open again automatically once the humidity exceed set value.


·Equipped with over-humidity alarm + door open alarm , and data logging system. (optional)

-In case the interior humidity exceeds the setting value, or the door is open, it will immediately alarm with sound and light, to remind the operator.


·Calibration Reminder

-Complying with the ISO regulation, a unique design of calibration expiration reminding function is offered in our nitrogen dry box storage.


What are nitrogen dry box storage?

Climatest Symor® nitrogen dry box storage are designed to control the filling of nitrogen gas into the cabinet, so that the preset relative humidity can be reached, the interior nitrogen dry box storage form an inert gas surrounded environment, to protect the components that are easy to oxidize, this nitrogen dry box storage can maintain humidity as low as 1%RH.


Nitrogen storage cabinets are the best low humidity control storage solution for electronic components, such as integrated circuits (IC), Printed circuit boards (PCB), medical devices, with faster humidity recovery time and more uniform low humidity condition.


Stainless steel nitrogen dry box storage are also available, which meet the strictest hygiene requirements, SS nitrogen dry box storage is ideal for storing semiconductor devices in cleanroom, like IC, wafer in cassettes.


How do nitrogen dry box storage work?

Nitrogen storage cabinets squeeze out the moisture and oxygen inside the cabinet, as so to reach the desired humidity level within 1-60%RH, the N2 cabinet is equipped with nitrogen-saving device, once the humidity inside cabinet reaches the set value, the system automatically cuts off the nitrogen supply, and open again nitrogen supply once the humidity exceed set value, this saves 70% nitrogen

compared with traditional type.


Moreover, a multi-points gas supply system is utilized in the nitrogen dry box storage, nitrogen is flushed into the cabinet through more than 30 small holes on nitrogen module (see below pic.), the nitrogen gas is evenly distributed in the cabinet to avoid the dead point and dead angle phenomenon caused by traditional single-point gas supply.

Nitrogen storage cabinets adopt high accuracy Switzerland imported RH sensor, with 2% accuracy.


The difference between nitrogen dry box storage and electronic dry cabinets:

1. The nitrogen dry box storage are filled with nitrogen gas to squeeze out the oxygen inside cabinet, so as to form an inert gas protection environment, this way can prevent the wafers, IC chips, and LED chips from being oxidized.

Nitrogen storage cabinets rely on the nitrogen purge to meet low humidity and anti-oxidization storage, the nitrogen purity is suggested to be >99%, nitrogen dry box storage are commonly used in microelectronics, semiconductor industries


The electronic dry cabinet is auto dry cabinet, dehumidifying dry storage cabinet, which can absorb moisture and discharge to the outside, to form a low humidity storage environment, it do has humidity control ability.


2. The nitrogen dry box storage use the inert gas to create an oxygen-free or low-oxygen environment, the products put into the nitrogen dry box storage are basically moisture-proof packaging, oxidation is difficult to occur.

The electronic dry cabinet can only control humidity, no anti-oxidization function,the oxygen content is almost same as the ambient environment.


Characteristics of nitrogen dry box storage

Nitrogen Purge Control N2 Desiccator Dry Cabinet

Independent modular design: This nitrogen dry box storage adopt a patented modular design, the temperature & humidity display, the control system, nitrogen module can be quickly replaced, maintenance is simple, this significantly improves maintenance efficiency.


Environmental design: The whole nitrogen dry box storage do not produce waste to pollute the environment. This model is designed for long-term use, if the main structure of the machine body is complete, non-destructive, only need to periodically check and replace the faulty module, it can be used forever, this is the latest green design that conforms to environmental protection.


Easy operation: There is no complicated settings, and personnel do not need training, the machine only needs plug in, it can operate fully automatically. It is an efficient industrial-grade nitrogen storage cabinet. It not only saves you personnel training cost, but also greatly improves the production efficiency of the factory.


Calibration reminder: The drift of sensors influence the nitrogen dry box storage accuracy. In order to comply with the ISO regulation, the calibration expiration reminding function is offered in this model. When the sensor runs over the preset days, the decimal point in the controller will flash to remind the user, this function effectively save manpower.


For more details about the nitrogen dry box storage, pls visit our website www.climatestsymor.com or directly send emails to sales@climatestsymor.com, we will get you back at quickest time, welcome for possible collaboration.
