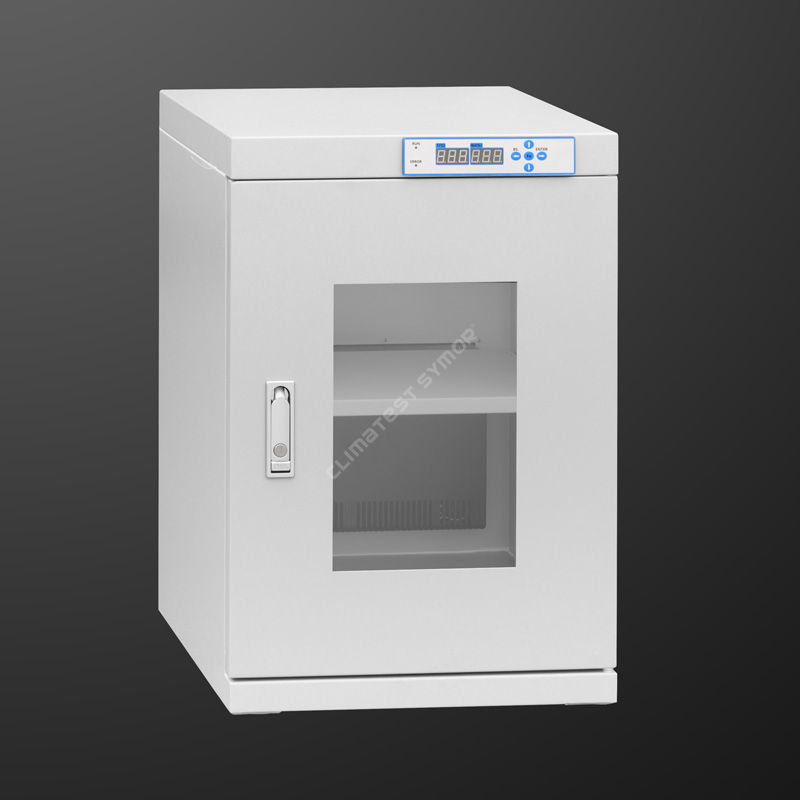

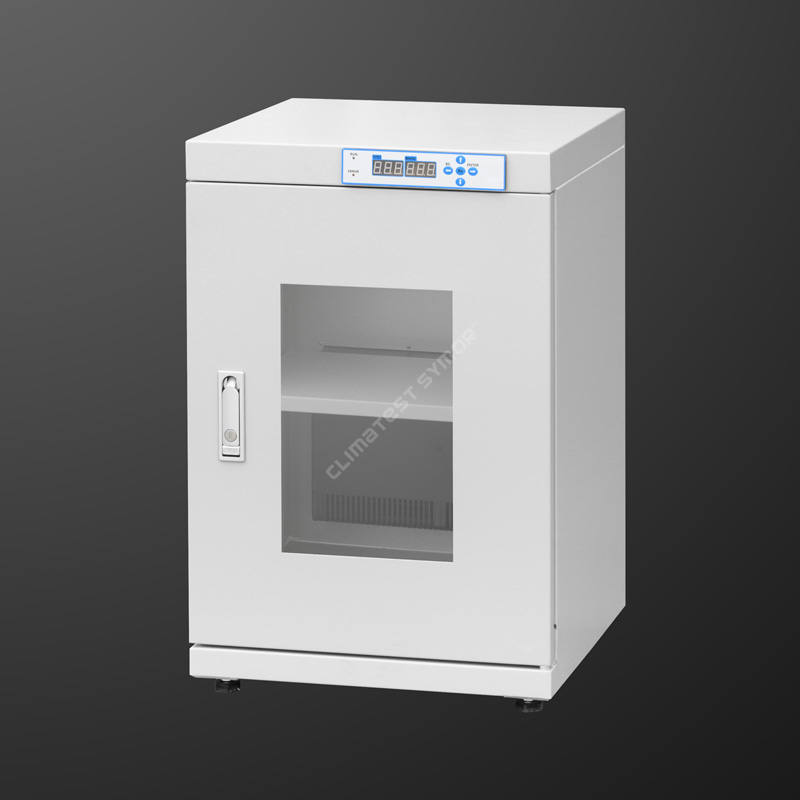

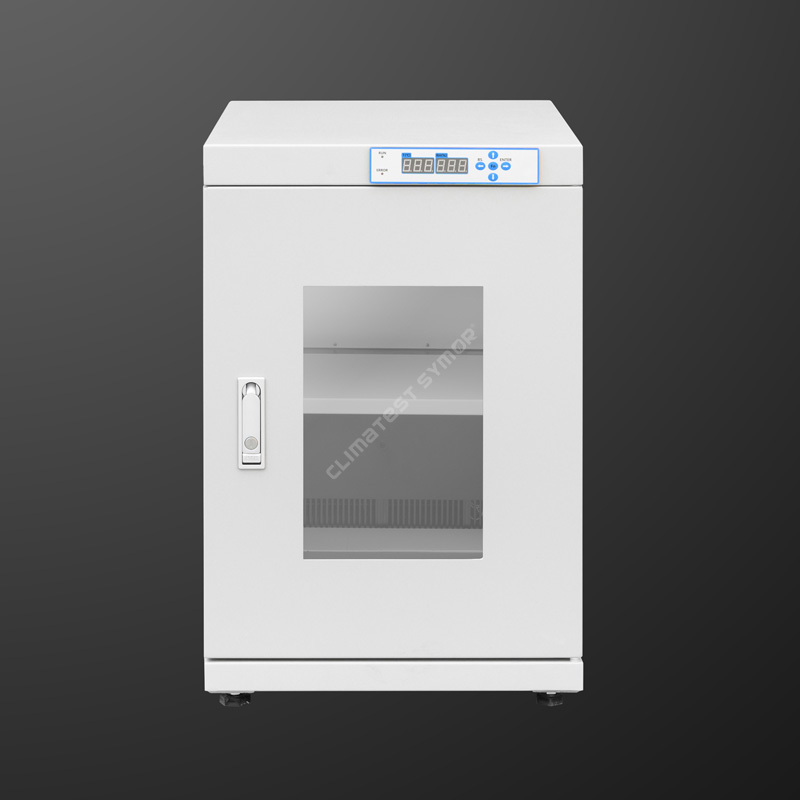

Benchtop Dry Storage Cabinet

Climatest Symor® is China benchtop dry storage cabinet manufacturer, we make different types of benchtop dry storage cabinet with cost effective price, each benchtop dry storage cabinet is supplied with most advanced dehumidifying technology, and come with two years warranty, the humidity is automatic for <5% series.

Model: TDU98 (benchtop type)
Capacity: 98L
Humidity: <5%RH Automatic
Recovery time: Max. 30 min after open door 30 seconds then closed. (Ambient 25℃ 60%RH)

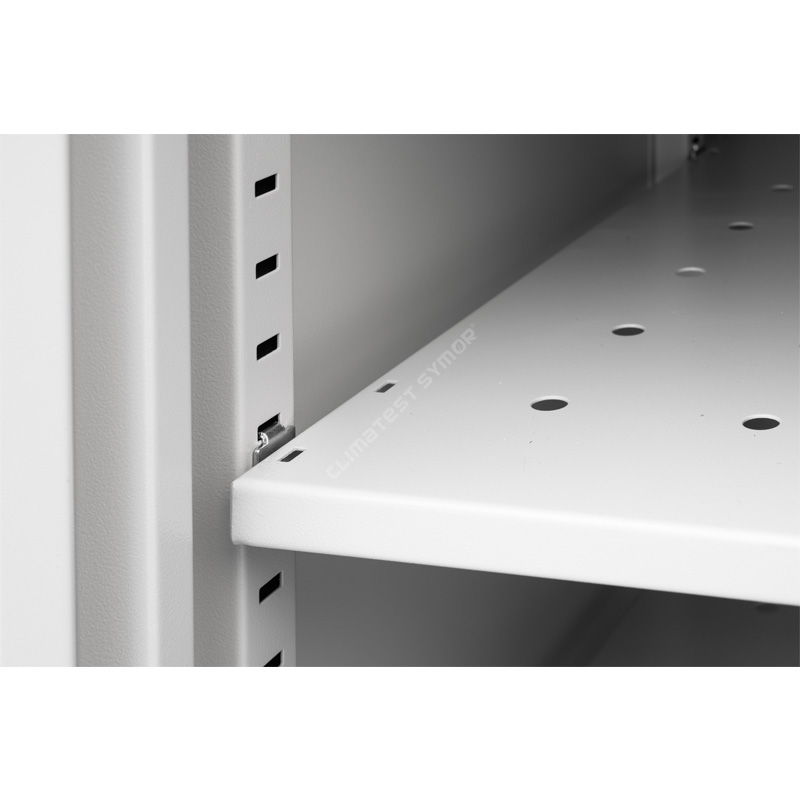

Shelves: 1pc, height adjustable
Color: Off white, non-ESD safe
Interior dimension: W446*D372*H598 MM
Exterior dimension: W448*D400*H688 MM

Send Inquiry

Product Description

Description

Climatest Symor® benchtop dry storage cabinet is compact design with high efficiency, it suits different application, like laboratory, automotive parts, and any application requires low humidity storage, the system absorbs moisture inside the products, and rapidly return RH to the user’s setting point on LED controller, the whole process is silent and automatic.


Specification

Mode# with F: ESD function, Dark Blue color.
Mode# without F: No ESD function, off white color

Model

Capacity

Interior Dimension

(W×D×H,mm)

Exterior Dimension

(W×D×H,mm)

Average Power (W)

Gross Weight (KG)

Max. Load/shelf (KG)

TDU98

98L

446*372*598

448*400*688

8

31

50

TDU98F

98L

446*372*598

448*400*688

8

31

50

TDU160

160L

446*422*848

448*450*1010

10

43

50

TDU160F

160L

446*422*848

448*450*1010

10

43

50

TDU240

240L

596*372*1148

598*400*1310

10

57

50

TDU240F

240L

596*372*1148

598*400*1310

10

57

50

TDU320

320L

898*422*848

900*450*1010

10

70

80

TDU320F

320L

898*422*848

900*450*1010

10

70

80

TDU435

435L

898*572*848

900*600*1010

10

82

80

TDU435F

435L

898*572*848

900*600*1010

10

82

80

TDU540

540L

596*682*1298

598*710*1465

10

95

80

TDU540F

540L

596*682*1298

598*710*1465

10

95

80

TDU718

718L

596*682*1723

598*710*1910

15

105

80

TDU718F

718L

596*682*1723

598*710*1910

15

105

80

TDU870

870L

898*572*1698

900*600*1890

15

130

100

TDU870F

870L

898*572*1698

900*600*1890

15

130

100

TDU1436-4

1436L

1198*682*1723

1200*710*1910

25

189

100

TDU1436F-4

1436L

1198*682*1723

1200*710*1910

25

189

100

TDU1436-6

1436L

1198*682*1723

1200*710*1910

25

189

100

TDU1436F-6

1436L

1198*682*1723

1200*710*1910

25

189

100


Feature

·Adopts Switzerland original imported humidity & temperature sensor.

-This ensures high accuracy in use, the benchtop dry storage cabinet has memory function, no need to re-set after power failure.


·Made by 1.2mm thickness galvanized steel, with USA DuPont ESD painting.

-Reinforced structure design, excellent load-bearing, surface treatment with 18 painting processes, the static resistance value meets 106 -108Ω, also with strong corrosion resistance.


·3.2mm high intensity tempered glass window for better observation.

- Flat press zinc alloy lock, with perfect air tightness and anti-theft function, this benchtop dry storage cabinet sealing performance is excellent.

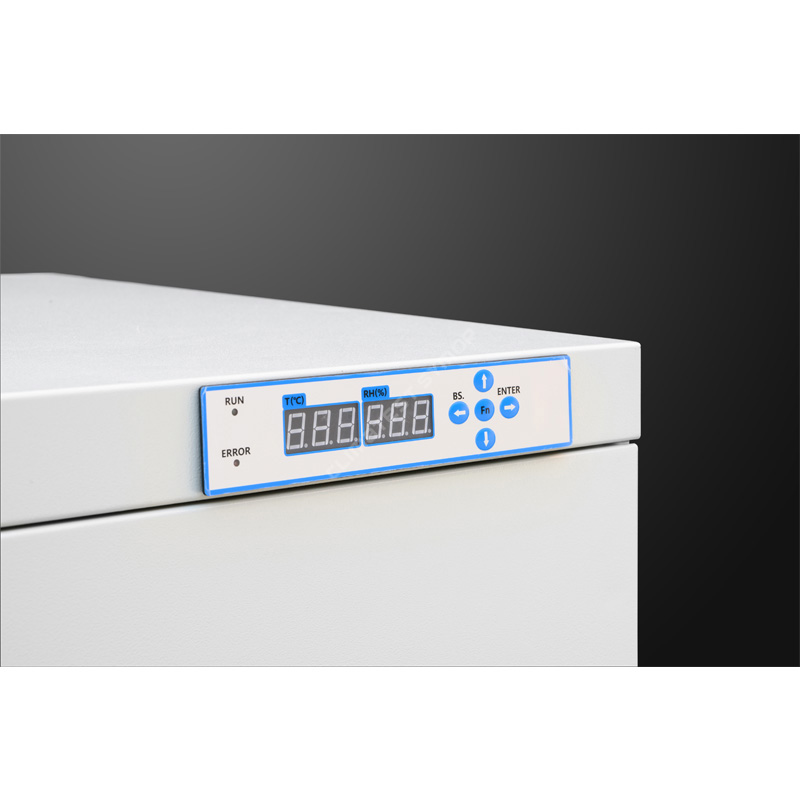

·With memory function, no need to re-set after power failure.

-The benchtop dry storage cabinet can automatically memorize the last setting value after power off, no need set again.


·Powerful dry unit with +15 years projected lifespan.

- The benchtop dry storage cabinet adopt 4A molecular sieve dry unit, the most advanced technique, it can be regenerated automatically, no need replacement.

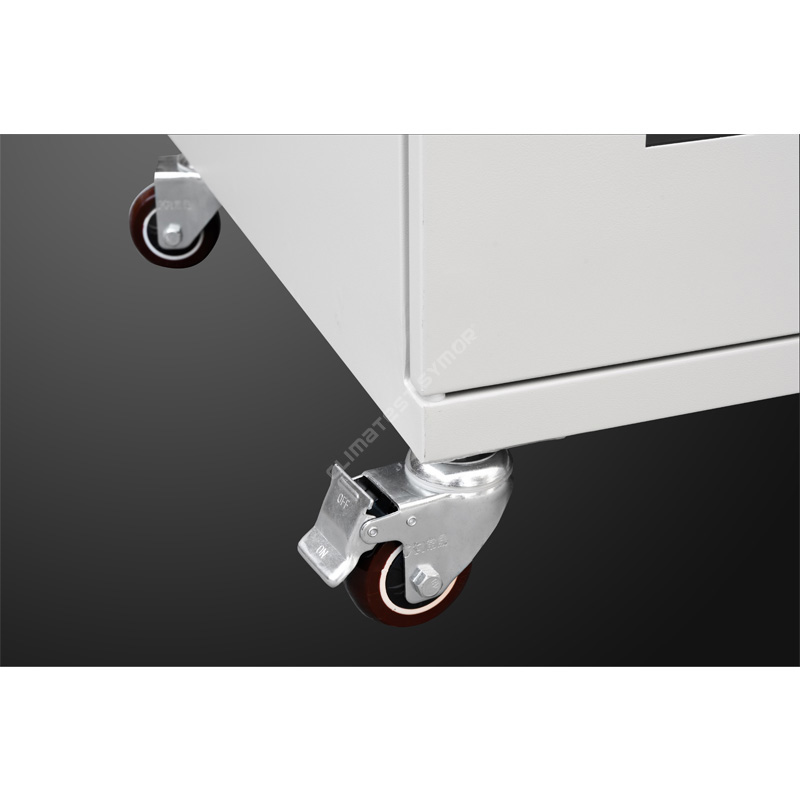

·Universal castors installed at bottom, ESD safe.

- Reinforced PU castors are installed at the bottom of benchtop dry storage cabinet, front two with brakes for easy move and stop.



Climatest Symor® benchtop dry storage cabinet

Climatest Symor® benchtop dry storage cabinet, is an enclosure with electronic humidity control that automatically maintains low relative humidity (RH) value, the benchtop dry storage cabinet comes in different sizes and shapes, it maintains <5%RH low humidity environment reliably, with precise RH control.
The dry unit is the core of the benchtop dry storage cabinet, it is made by synthetic desiccant, which is self generating, auto-dehumidifying, and maintenance free, this synthetic desiccant lifespan is + 15 years without replacement, there is no cooling drops, no desiccant bags, users just connect it to the power supply, and set RH value, it will automatically proceed dehumidify cycles, absorb and discharge RH intelligently, the whole process is safe and environmental.

Climatest Symor® benchtop dry storage cabinet uses high accuracy Switzerland imported RH sensor, the sensor automatically controls the refreshing and recycling of the synthetic desiccant, the sensor deviation is +/- 2%RH, see below specification:

The benchtop dry storage cabinet just displays the real-time temperature inside for monitoring purpose,it uses high accuracy Switzerland imported temp. sensor, the sensor deviation is +/- 0.3 degree C, see below specification:


Benchtop dry storage cabinet application

Benchtop dry storage cabinet is the OPTIMAL storage solution for:
※ Automotive parts, like engine components, bearings, springs, plungers.
※ Pharmaceutical materials, like herbal medicine, pills, capsules, raw material.
※ Military weapons, precision instruments, museum, photos & lens.
※ Moisture-absorbing materials, such as epoxy, resins, adhesive


<5%RH Series dehumidifying speed:

Open door 30 seconds and then closed, the humidity will recover to <5%RH within 30 minutes,see below curve: (Ambient 25 degree C, humidity 60%RH)


WHAT ARE THE COMMON METHODS TO STORE HUMIDITY SENSITIVE COMPONENTS?

1.Desiccant bags
❊Method: The moisture sensitive components are packed in an enclosure, the traditional desiccant bags are also put inside the enclosure, it can absorb the moisture inside to keep a dry environment.
❊Disadvantage: Desiccant bag= consumables, RH control performance is bad, short time.

2.Nitrogen cabinets
❊Method: The moisture sensitive components are stored in nitrogen purge cabinets or compressed air to meet low humidity storage.
❊Disadvantage: Nitrogen filling = continuous N2 consumption, high cost.

3.Dry storage cabinets
❊Method: The moisture sensitive components are placed in a dry storage cabinet, just plug in, the machine will automatically work, and reach the setting value.
❊ Advantages: No consumables, no manual work, no nitrogen consumption, environmental, only a little bit of electricity needed.

From above comparison, dry storage cabinet brings you higher efficiency and lower cost, it is the most cost-effective choice in the long term.


We provide benchtop dry storage cabinet solutions to below industries:

  • Electronic production

  • Semiconductor

  • Pharmaceutical

  • Laboratory

  • Aviation

  • Military


Advantages of benchtop dry storage cabinet


For more details about benchtop dry storage cabinet, pls visit our website www.climatestsymor.com or directly send emails to sales@climatestsymor.com, we will get you back at quickest time, welcome for possible collaboration.
