Dry Cabinet for Semiconductor Devices

Description

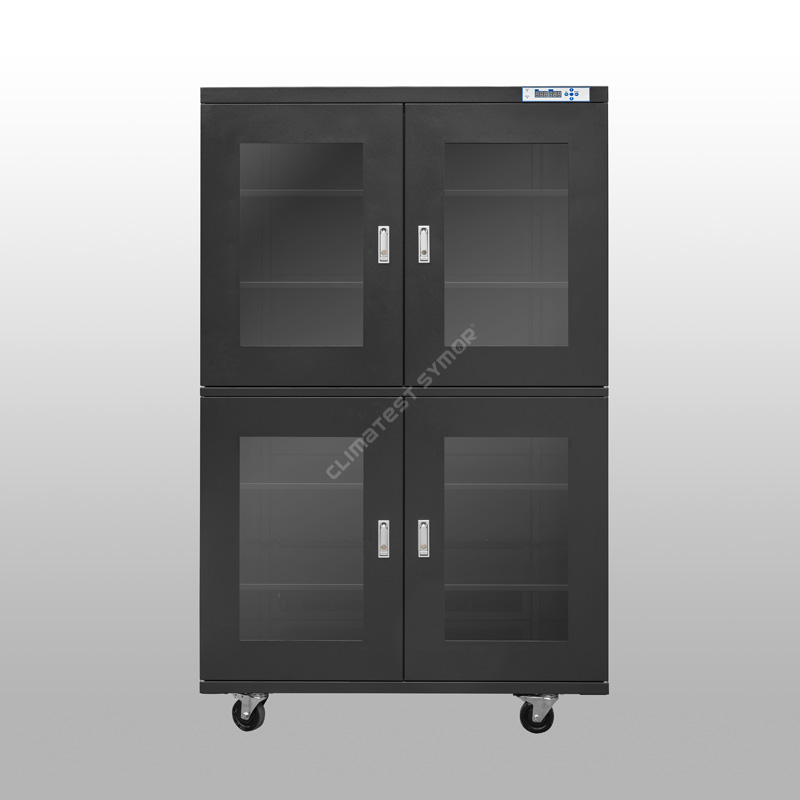

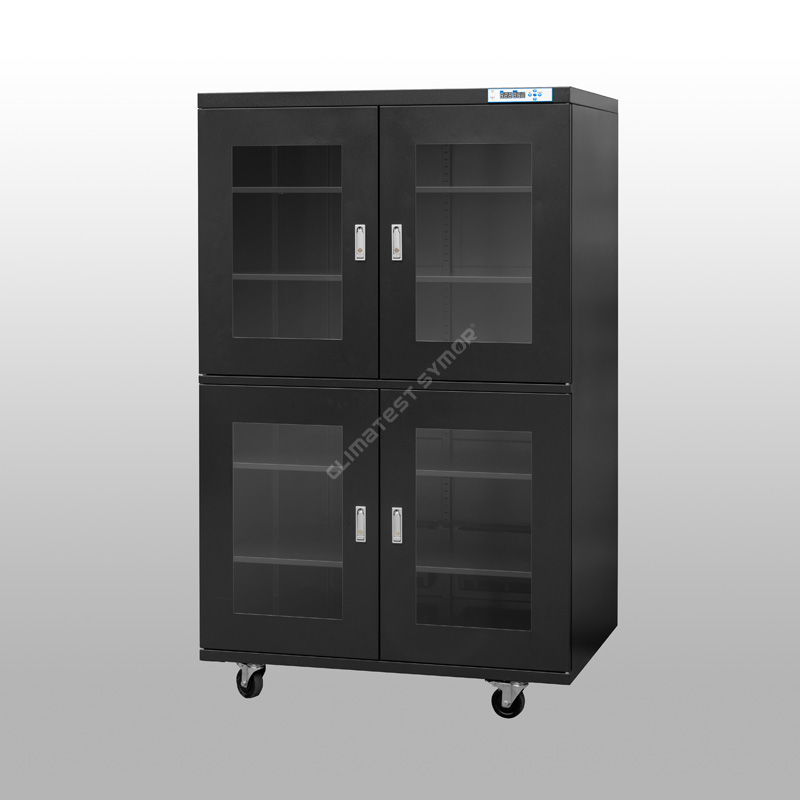

Climatest Symor® dry cabinets for semiconductor devices are built to maintain an internal relative humidity (RH) level below 3% and have automatic desiccant regeneration systems. These cabinets are suitable for long-term storage of components, such as SMDs, printed circuit boards (PCBs), and IC packages.

Dry Cabinet for Semiconductor Devices: Specification

Model# with F: ESD safe function, dark blue color.

Model# without F: No ESD safe function, off white color.

Dry Cabinet for Semiconductor Devices: Features

● Electronically controlled dehumidifying system

● Minimize moisture and protect your storage items from dust and dirt

● Combination safety locks

● Adjustable shelves and feet

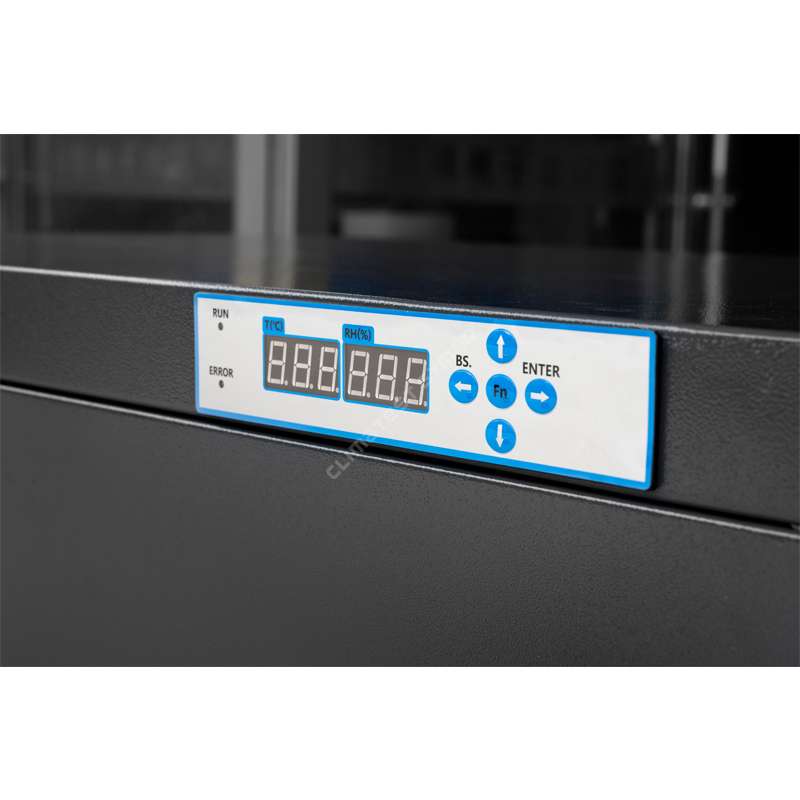

● Bright, easy-to-read LCD display

Dry Cabinet for Semiconductor Devices: Design

● Module design: Each module can be replaced individually.

● Environment-friendly design: Old modules can be removed and shipped back to the original factory for replacement.

● Flexible design: Customers can select options, such as an over-humidity buzzer alarm, data logger, door-opening buzzer alarm, and three-color flashing light.

Dry cabinets for semiconductor devices: Application

During SMT reflow, if the humidity in the ambient is high, moisture will invade the electronics. The moisture that penetrates the interior will expand, causing micro-cracks. The damage is invisible, but in some cases, cracks will expand to the surfaces, known as popcorning, causing component repair or even waste. Climatest Symor® IC dry cabinet for IC packages can fix these problems for you. We provide <5%RH, <10%RH, complying with the MSD level specified by IPC standards.

These drying cabinets solve moisture problems with ultra-low humidity storage environments and comply with industry standards for MSDs and PCBs. Instead of high-temperature baking, these cabinets dehumidify during storing, which is best suited for removing moisture in SMT production, thereby eliminating damage during reflow.

How does Climatest Symor® dry unit work?

Traditional desiccants are consumables, which always need replacement, and very inconvenient, Climatest Symor® dry cabinets for semiconductor devices, PCB storage dry cabinets use molecular sieve inside dry units, the molecular sieve is the most effective and environment-friendly desiccant, it can be regenerated in use, no need replacement. The whole dehumidifying process is microcomputer controlled, when the interior humidity is high, it will start to absorb moisture; when the humidity reach the setting value, it will stop absorbing, and then discharge the moisture to outside, it is automatic.

<3%RH series dehumidifying speed:

Under ambient 25 degree C, humidity 60%RH, open door 30 seconds and then closed, the humidity will recover to <3%RH within 30 minutes, see below curve:

Benefits to you

Climatest Symor® or PCB storage dry cabinet, is widely used and trusted by professionals in electronics manufacturing, R&D, cleanroom, and laboratories. These drying cabinets adopt self-regenerating desiccant dehumidifiers to provide an ultra-low humidity atmosphere. These cabinets don't require dry air/nitrogen purging, can automatically control <3%RH humidity, and have a quick recovery time. A small investment gives you a big return.

● Use +/-2%RH high-precision temp. & humidity sensor, protect your storage items.

● Powerful desiccant with a service life of +15 years, save replacement cost.

● Minimize moisture and protect your MSD from dirt and dust

● Two years warranty

We also provide electronic dry cabinets to the following industries:

•

  Electronic production

•

  Semiconductor

•

  Pharmaceutical

•

  Laboratory

•

  Aviation

•

  Military

Dry cabinets for semiconductor devices: Advantages

● RoHS certified to avoid pollution on your electronics

● Desiccant no need replacement, no consumables, low maintenance, cost-saving

● Comply with J-STD-033 standard

● ISO9001:2015 and CE approved

FAQ

Q: What is the cost of the cabinet?

A: Prices depend on the humidity series and volumes you need.

Q: Are there additional costs (e.g., replacement parts)?

A: No consumables, and if any parts malfunction during the warranty period, we will send you parts for free.

Q: Are there any ongoing costs related to operation and maintenance?

A: No for dry cabinets, but N2 gas is consumable if you select N2 cabinet.

Q: Are there comments or testimonials from other customers?

A: Yes, we have received great feedback from customers in different countries.

Q: What are common issues reported by users?

A: It works reliably without any issues.

Q: How responsive is the company to customer feedback and complaints?

A: Within 12 hours.

For more details about PCB storage drying cabinets, please visit our website www.climatestsymor.com, or send an email directly to sales@climatestsymor.com, we will reply to you as soon as possible, and welcome for collabration.
